FQB10N50CF - N-Channel MOSFET

ON Semiconductor

The FQB10N50CF by ON Semiconductor is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

FQB10N50CF N-Channel MOSFET by ON Semiconductor - Datasheet Preview — Official preview page of the FQB10N50CF N-Channel MOSFET datasheet (ON Semiconductor).

Datasheet Details

Part number	FQB10N50CF
Manufacturer	ON Semiconductor
File Size	879.96 KB
Description	N-Channel MOSFET
Datasheet	FQB10N50CF-ONSemiconductor.pdf

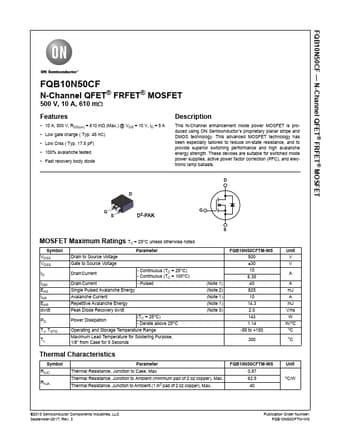

Additional preview pages of the FQB10N50CF datasheet.

FQB10N50CF Product details

Description

This N-Channel enhancement mode power MOSFET is produced using ON Semiconductor’s proprietary planar stripe and DMOS technology.

Features

10 A, 500 V, RDS(on) = 610 mΩ (Max. ) @ VGS = 10 V, ID = 5 A.
Low gate charge ( Typ. 45 nC).
Low Crss ( Typ. 17.5 pF).
100% avalanche tested.
Fast recovery body diode.
