FMS6364A - Low-Cost Four-Channel Standard Definition (SD) & High (HD) Definition Video Filter Driver

Fairchild Semiconductor

The FMS6364A by Fairchild Semiconductor is a Low-Cost Four-Channel Standard Definition (SD) & High (HD) Definition Video Filter Driver. Below is the official datasheet preview.

📥 Download Datasheet

FMS6364A Low-Cost Four-Channel Standard Definition (SD) & High (HD) Definition Video Filter Driver by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FMS6364A** Low-Cost Four-Channel Standard Definition (SD) & High (HD) Definition Video Filter Driver datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FMS6364A
Manufacturer	Fairchild Semiconductor
File Size	448.22 KB
Description	Low-Cost Four-Channel Standard Definition (SD) & High (HD) Definition Video Filter Driver
Datasheet	FMS6364A_FairchildSemiconductor.pdf

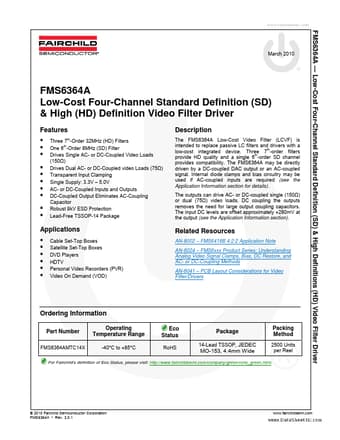

Additional preview pages of the FMS6364A datasheet.

FMS6364A Product details

Description

The FMS6364A Low-Cost Video Filter (LCVF) is intended to replace passive LC filters and drivers with a th low-cost integrated device.

Features

Three 7 -Order 32MHz (HD) Filters th One 6 -Order 8MHz (SD) Filter Drives Single AC- or DC-Coupled Video Loads (150Ω) Drives Dual AC- or DC-Coupled video Loads (75Ω) Transparent Input Clamping Single Supply: 3.3V.
5.0V AC- or DC-Coupled Inputs and Outputs DC-Coupled Output Eliminates AC-Coupling Capacitor Robust 9kV ESD Protection Lead-Free TSSOP-14 Package th.
