FMS6366 - Selectable YPbPr HD/SD 4:2:2 Video Filter Driver

Description

The FMS6366 Filter Driver offers comprehensive filtering for set top box or DVD applications.

This part consists of triple 6th order filters with selectable cutoffs for SD or HD.

The filters are in a 4:2:2 configuration such that Y1 switches between 8MHz (SD) and 30MHz (HD).

Features

  • Pin-compatible version of the FMS6419 for 4:2:2 video Requires external delay compensation 6th order standard/high definition video filters YPbPr 4:2:2 filters (8/30MHz : 4/15MHz : 4/15MHz) YC standard definition filters (8MHz) Composite summer output DC-coupled inputs, AC-coupled outputs.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FMS6143 Low-Cost Three-Channel 4th-Order Standard Def nition Video Filter Driver ON Semiconductor
FMS-109 Broadband Frequency Doubler Tyco Electronics
FMS-109 Broadband Frequency Doubler MA-COM
FMS006-0001 SIM Card Reader Yamaichi Electronics
FMS2001ES1 Low Loss SPDT Reflective pHEMT MMIC Switch Filtronic

Other Datasheets by Fairchild (onsemi)

Part Number Description
FMS6363 Low Cost Three Channel High Definition Video Filter Driver
FMS6363A Three-Channel 7th-Order High-Definition VoltagePlus Video Filter Driver
FMS6364A Low-Cost Four-Channel Standard Definition (SD) & High (HD) Definition Video Filter Driver
FMS6303 Low-Cost 3-Channel Video Filter Driver
FMS6346 6th Order SD/HD Video Filter Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

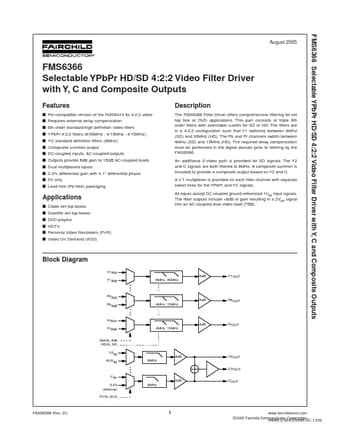

FMS6366 Selectable YPbPr HD/SD 4:2:2 Video Filter Driver with Y, C and Composite Outputs August 2005 FMS6366 Selectable YPbPr HD/SD 4:2:2 Video Filter Driver with Y, C and Composite Outputs Features ■ ■ ■ ■ ■ ■ ■ Pin-compatible version of the FMS6419 for 4:2:2 video Requires external delay compensation 6th order standard/high definition video filters YPbPr 4:2:2 filters (8/30MHz : 4/15MHz : 4/15MHz) YC standard definition filters (8MHz) Composite summer output DC-coupled inputs, AC-coupled outputs Description The FMS6366 Filter Driver offers comprehensive filtering for set top box or DVD applications. This part consists of triple 6th order filters with selectable cutoffs for SD or HD. The filters are in a 4:2:2 configuration such that Y1 switches between 8MHz (SD) and 30MHz (HD).
