FL7930CMX, FL7930C - Single-Stage Flyback and Boundary-Mode PFC Controller

Fairchild Semiconductor

The FL7930CMX by Fairchild Semiconductor is a Single-Stage Flyback and Boundary-Mode PFC Controller. Below is the official datasheet preview.

📥 Download Datasheet

FL7930CMX Single-Stage Flyback and Boundary-Mode PFC Controller by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FL7930CMX** Single-Stage Flyback and Boundary-Mode PFC Controller datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FL7930CMX, FL7930C
Manufacturer	Fairchild Semiconductor
File Size	1.44 MB
Description	Single-Stage Flyback and Boundary-Mode PFC Controller
Datasheet	FL7930C-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FL7930CMX, FL7930C. Please refer to the document for exact specifications by model.

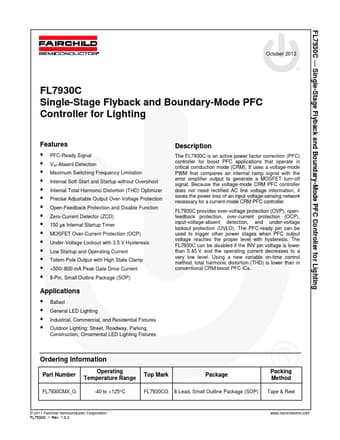

Additional preview pages of the FL7930CMX datasheet.

FL7930CMX Product details

Description

The FL7930C is an active power factor correction (PFC) controller for boost PFC applications that operate in critical conduction mode (CRM).

Features

PFC-Ready Signal.
VIN-Absent Detection.
Maximum Switching Frequency Limitation.
Internal Soft-Start and Startup without Overshoot.
Internal Total Harmonic Distortion (THD) Optimizer.
Precise Adjustable Output Over-Voltage Protection.
Open-Feedback Protection and Disable Function.
Zero-Current Detector (ZCD).
150 μs Internal Startup Timer.
MOSFET Over-Current Protection (OCP).
Under-Voltage Lockout with 3.5 V Hysteresis.
Low Startup and.
