FL73282 - Half-Bridge Gate Driver

ON Semiconductor

📥 Download Datasheet

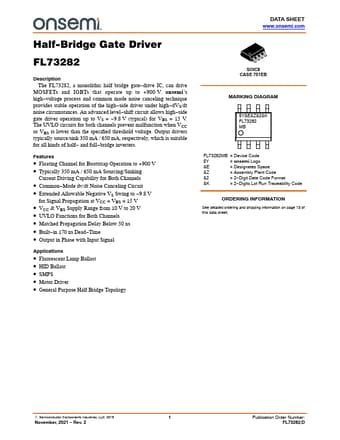

FL73282 Datasheet Preview — Preview of FL73282 PDF

Datasheet Details

Part number	FL73282
Manufacturer	ON Semiconductor
File Size	269.55 KB
Description	Half-Bridge Gate Driver
Datasheet	FL73282-ONSemiconductor.pdf

FL73282 Product details

Description

The FL73282, a monolithic half bridge gate drive IC, can drive MOSFETs and IGBTs that operate up to +900 V.onsemi’s high voltage process and common mode noise canceling technique provides stable operation of the high side driver under high dVS/dt noise circumstances. shift circuit allows high side gate driver operation up to VS = 9.8 V (typical) for VBS = 15 V.

Features

Floating Channel for Bootstrap Operation to +900 V.
Typically 350 mA / 650 mA Sourcing/Sinking Current Driving Capability for Both Channels.
Common.
Mode dv/dt Noise Canceling Circuit.
Extended Allowable Negative VS Swing to.
9.8 V for Signal Propagation at VCC = VBS = 15 V.
VCC & VBS Supply Range from 10 V to 20 V.
UVLO Functions for Both Channels.
Matched Propagation Delay Below 50 ns.
Built.
in 170.
