FDS9945 - 60V N-Channel PowerTrench MOSFET

Name: FDS9945
SKU: FDS9945-211037

Fairchild Semiconductor

📥 Download Datasheet

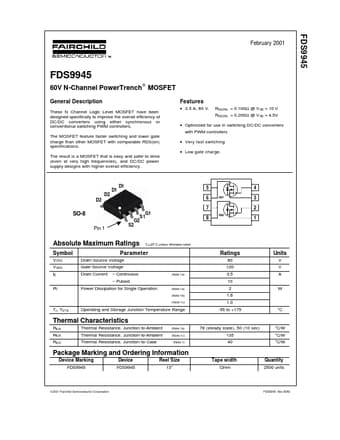

FDS9945 Datasheet Preview — Preview of FDS9945 PDF

Datasheet Details

Part number	FDS9945
Manufacturer	Fairchild Semiconductor
File Size	73.02 KB
Description	60V N-Channel PowerTrench MOSFET
Datasheet	FDS9945_FairchildSemiconductor.pdf

FDS9945 Product details

Description

These N Channel Logic Level MOSFET have been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.

Features

3.5 A, 60 V. RDS(ON) = 0.100Ω @ V GS = 10 V RDS(ON) = 0.200Ω @ V GS = 4.5V.
Optimized for use in switching DC/DC converters with PWM controllers.
Very fast switching.
Low gate charge. D2 D D2 D DD1 D1 D 5 6 7 Q1 4 3 2 Q2 SO-8 Pin 1 SO-8 G1 S1 G G2 S S2 S 8 1 S Absolute Maximum Ratings Symbol V DSS V GSS ID PD Drain-Source Voltage Gate-Source Voltage Drain Current.
Continuous.
Pulsed TA=25oC unless otherwise noted Parameter Rat.
