FDS7064SN3 - 30V N-Channel PowerTrench SyncFET

Description

The FDS7064SN3 is designed to improve the efficiency of Buck Regulators.

Used as the Synchronous rectifier, (Low side MOSFET), losses can be reduced, not only in this device, but also in the Control switch, (High side MOSFET).

Features

  • DS(ON) = 8.0 mΩ @ VGS = 10 V RDS(ON) = 9.5 mΩ @ VGS = 4.5 V.
  • 16 A, 30 V.
  • High performance trench technology for extremely low RDS(ON).
  • No inductance between MOSFET and Schottky.
  • 40% reduction in Body Diode Forward Voltage.
  • Optimized to reduce losses in Synchronous Buck Regulators.
  • FLMP SO-8 package for enhanced thermal performance.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDS010 Photodiodes Thorlabs
FDS100BA60 DIODE MODULE SanRex Corporation
FDS100CA100 FAST RECOVERY DIODE MODULE SanRex Corporation
FDS100CA120 FAST RECOVERY DIODE MODULE SanRex Corporation
FDS1010 Photodiodes Thorlabs

Other Datasheets by Fairchild (onsemi)

Part Number Description
FDS7064A 30V N-Channel PowerTrench MOSFET
FDS7064N 30V N-Channel PowerTrench MOSFET
FDS7060N7 30V N-Channel PowerTrench MOSFET
FDS7066ASN3 30V N-Channel PowerTrench SyncFET
FDS7066N3 30V N-Channel PowerTrench MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

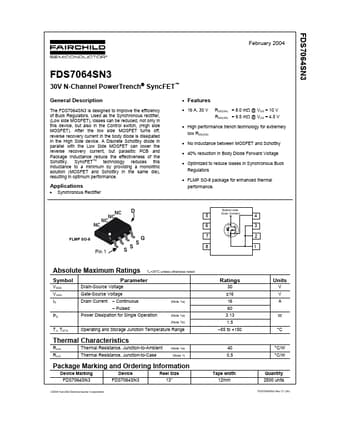

FDS7064SN3 February 2004 FDS7064SN3 30V N-Channel PowerTrench SyncFET™ General Description The FDS7064SN3 is designed to improve the efficiency of Buck Regulators. Used as the Synchronous rectifier, (Low side MOSFET), losses can be reduced, not only in this device, but also in the Control switch, (High side MOSFET). After the low side MOSFET turns off, reverse recovery current in the body diode is dissipated in the High Side device. A Discrete Schottky diode in parallel with the Low Side MOSFET can lower the reverse recovery current, but parasitic PCB and Package Inductance reduce the effectiveness of the TM technology reduces this Schottky. SyncFET inductance to a minimum by providing a monolithic solution (MOSFET and Schottky in the same die), resulting in optimum performance.
