FDS100CA120 - FAST RECOVERY DIODE MODULE

Download the FDS100CA120 datasheet PDF. This datasheet also covers the FDS100CA100 variant, as both devices belong to the same fast recovery diode module family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FDS100CA100_SanRexCorporation.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number FDS100CA120
Manufacturer SanRex Corporation
File Size 122.52 KB
Description FAST RECOVERY DIODE MODULE
Datasheet download datasheet FDS100CA120 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDS1010 Photodiodes Thorlabs
FDS010 Photodiodes Thorlabs
FDS2070N3 N-Channel MOSFET Fairchild Semiconductor
FDS2070N7 N-Channel MOSFET Fairchild Semiconductor
FDS2170N3 N-Channel MOSFET Fairchild Semiconductor

Other Datasheets by SanRex Corporation

Part Number Description
FDS100CA100 FAST RECOVERY DIODE MODULE
FDS100BA60 DIODE MODULE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

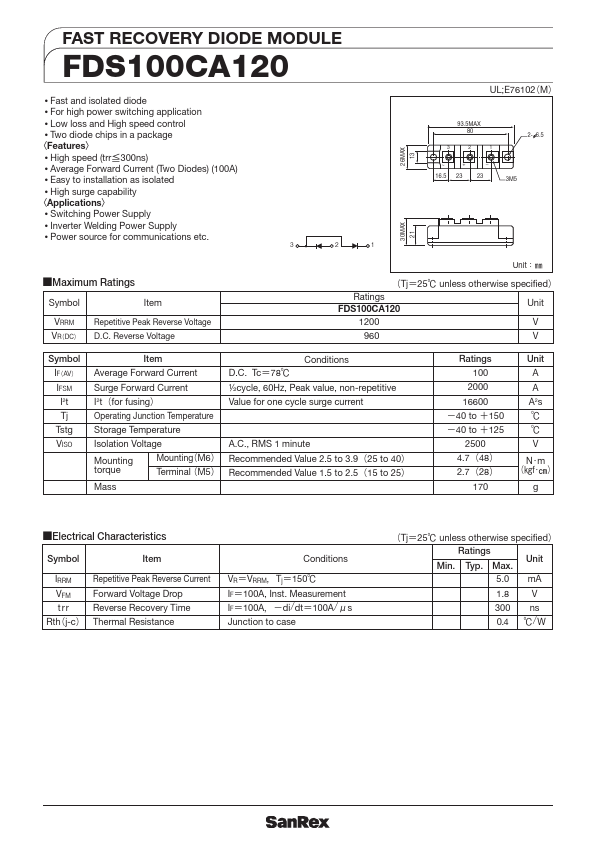

www.DataSheet4U.com DIODE MODULE F.R.D. FDS100CA100/120 UL;E76102 M FDS100CA is a high speed (fast recovery) diode module designed for high power switching application. FDS100CA is suitable for high frequency application requiring low loss and high speed control. High Speed trr 300ns IF AV 100A each device Isolated mounting construction. High Surge Capability Applications Switching Power Supply. Inverter Welding Power Supply Power Supply for Telecommunication 26MAX 3 93.5MAX 80 2 + – 1 2- 6.5 13 ~ 16.5 23 23 3M5 30MAX 21 Unit Maximum Ratings Symbol VRRM VR DC Tj 25 Item Ratings FDS100CA100 1000 800 Conditions D.C.
