FDS7064N - 30V N-Channel PowerTrench MOSFET

Fairchild Semiconductor

The FDS7064N by Fairchild Semiconductor is a 30V N-Channel PowerTrench MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

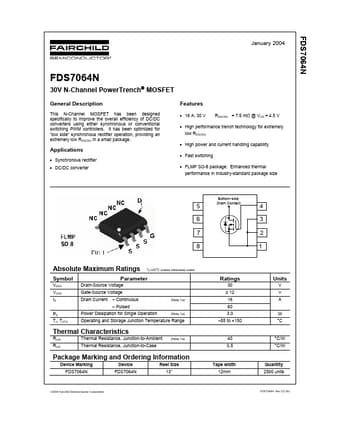

FDS7064N 30V N-Channel PowerTrench MOSFET by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FDS7064N** 30V N-Channel PowerTrench MOSFET datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FDS7064N
Manufacturer	Fairchild Semiconductor
File Size	171.40 KB
Description	30V N-Channel PowerTrench MOSFET
Datasheet	FDS7064N_FairchildSemiconductor.pdf
Additional preview pages of the FDS7064N datasheet.

FDS7064N Product details

Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.

Features

16 A, 30 V RDS(ON) = 7.5 mΩ @ VGS = 4.5 V.
High performance trench technology for extremely low RDS(ON).
High power and current handling capability.
Fast switching.
FLMP SO-8 package: Enhanced thermal performance in industry-standard package size.
