FDD2570 - 150V N-Channel PowerTrench MOSFET

Name: FDD2570
SKU: FDD2570-210583

Fairchild Semiconductor

📥 Download Datasheet

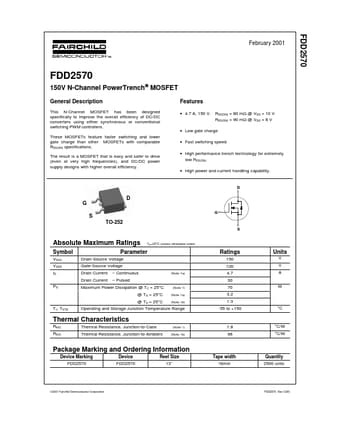

FDD2570 Datasheet Preview — Preview of FDD2570 PDF

Datasheet Details

Part number	FDD2570
Manufacturer	Fairchild Semiconductor
File Size	99.93 KB
Description	150V N-Channel PowerTrench MOSFET
Datasheet	FDD2570_FairchildSemiconductor.pdf

FDD2570 Product details

Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.

Features

4.7 A, 150 V. RDS(ON) = 80 mΩ @ VGS = 10 V RDS(ON) = 90 mΩ @ VGS = 6 V.
Low gate charge.
Fast switching speed.
High performance trench technology for extremely low RDS(ON).
High power and current handling capability. D D G S TO-252 S G Absolute Maximum Ratings Symbol VDSS VGSS ID PD Drain-Source Voltage Gate-Source Voltage Drain Current Drain Current.
Continuous.
Pulsed TA=25oC unless otherwise noted Parameter Ratings 150 ±20.
