FDD2512 - 150V N-Channel PowerTrench MOSFET

Name: FDD2512
SKU: FDD2512-210582

Fairchild Semiconductor

📥 Download Datasheet

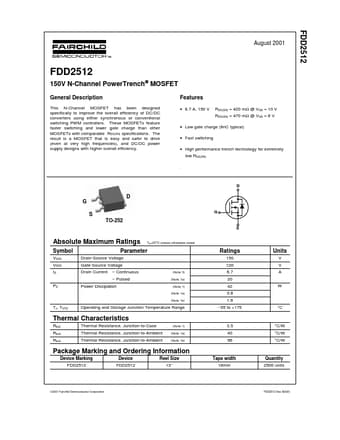

FDD2512 Datasheet Preview — Preview of FDD2512 PDF

Datasheet Details

Part number	FDD2512
Manufacturer	Fairchild Semiconductor
File Size	86.47 KB
Description	150V N-Channel PowerTrench MOSFET
Datasheet	FDD2512_FairchildSemiconductor.pdf

FDD2512 Product details

Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.

Features

6.7 A, 150 V RDS(ON) = 420 mΩ @ VGS = 10 V RDS(ON) = 470 mΩ @ VGS = 6 V.
Low gate charge (8nC typical).
Fast switching.
High performance trench technology for extremely low RDS(ON) . D G S TO-252 Absolute Maximum Ratings TA=25oC unless otherwise noted Symbol VDSS VGSS ID PD Parameter Drain-Source Voltage Gate-Source Voltage Drain Current.
Continuous.
Pulsed Power Dissipation (Note 3) (Note 1a) (Note 1) (Note 1a) (Note 1b) TJ, TSTG O.
