FDBL0240N100 100V 210A N-Channel MOSFET

Fairchild Semiconductor

FDBL0240N100 Description

FDBL0240N100 N-Channel PowerTrench® MOSFET FDBL0240N100 N-Channel PowerTrench® MOSFET 100 V, 210 A, 2.8 mΩ .

FDBL0240N100 Features

* Max RDS(on) = 2.8 mΩ at VGS = 10 V, ID = 80 A
* Max Qg(tot) = 111 nC at VGS = 10 V, ID = 80 A
* UIS Capability

FDBL0240N100 Applications

* Industrial Motor Drive
* Industrial Power Supply
* Industrial Automation
* Battery Operated tools
* Battery Protection
* Solar Inverters
* UPS and Energy Inverters
* Energy Storage
* Load Switch November 2015 D D TOP S SSS

📥 Download Datasheet

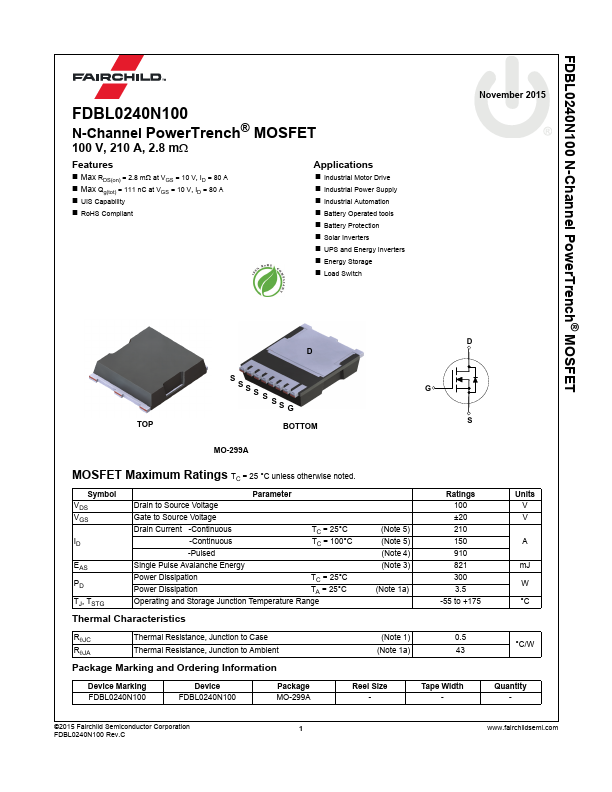

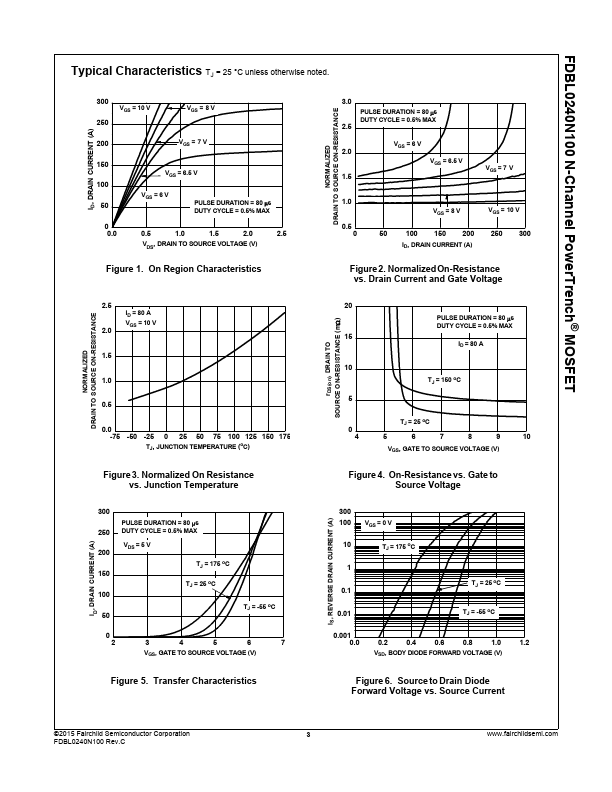

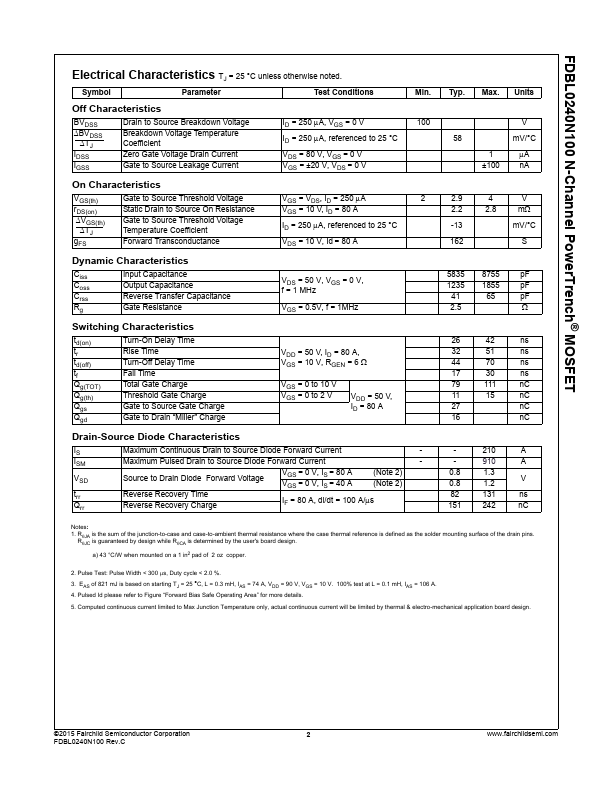

FDBL0240N100 Datasheet Preview — Preview of FDBL0240N100 PDF

Datasheet Details

Part number: FDBL0240N100
Manufacturer: Fairchild Semiconductor
File Size: 428.59 KB
Datasheet: FDBL0240N100-FairchildSemiconductor.pdf
Description: 100V 210A N-Channel MOSFET
