FAN7602B - Green Current-Mode PWM Controller

Datasheet Summary

Description

The FAN7602B is a green current-mode PWM controller.

It is specially designed for off-line adapter applications; DVDP, VCR, LCD monitor applications; and auxiliary power supplies.

The internal high-voltage start-up switch and the burstmode operation reduce the power loss in standby mode.

Features

  • Green Current-Mode PWM Control.
  • Fixed 65kHz Operation.
  • Internal High-Voltage Start-up Switch.
  • Burst-Mode Operation.
  • Line Voltage Feedforward to Limit Maximum Power.
  • Line Under-Voltage Protection.
  • Latch Protection & Internal Soft-Start (10ms) Function.
  • Overload Protection.
  • Over-Voltage Protection.
  • Low Operation Current: 1mA Typical.
  • 8-pin DIP/SOP.

📥 Download Datasheet

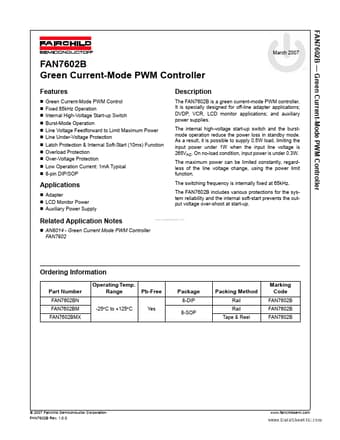

Datasheet preview – FAN7602B
