FAN7530 - Critical Conduction Mode PFC Controller

General Description

The FAN7530 is an active power factor correction (PFC) controller for the boost PFC applications that operates in critical conduction mode (CRM).

It uses the voltage mode PWM that compares an internal ramp signal with the error amplifier output to generate MOSFET turn-off signal.

Key Features

  • Low Total Harmonic Distortion (THD).
  • Precise Adjustable Output Over-Voltage Protection.
  • Open-Feedback Protection and Disable Function.
  • Zero Current Detector.
  • 150µs Internal Start-up Timer.
  • MOSFET Over-Current Protection.
  • Under-Voltage Lockout with 3.5V Hysteresis.
  • Low Start-up (40µA) and Operating Current (1.5mA).
  • Totem Pole Output with High State Clamp.
  • +500/-800mA Peak Gate Drive Current.
  • 8-pin DIP or 8-pin SOP.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FAN7527B Power Factor Correction Controller ON Semiconductor
FAN7080-GF085 Half Bridge Gate Driver ON Semiconductor
FAN7083-GF085 High Side Gate Driver ON Semiconductor
FAN7085-GF085 High Side Gate Driver ON Semiconductor
FAN7171-F085 High-Side Automotive Gate Driver IC ON Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
FAN7532 Ballast Control IC
FAN7535 PFC & Ballast Controller
FAN7527B Power Factor Correction Controller
FAN7528 Critical Conduction Mode PFC Controller
FAN7529 Critical Conduction Mode PFC Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

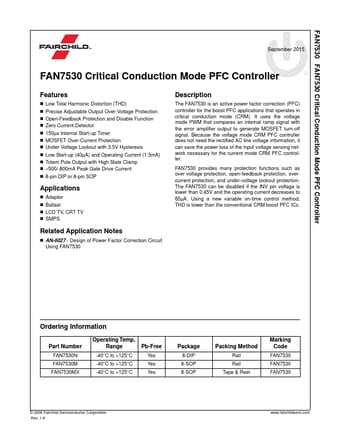

FAN7530 FAN7530 Critical Conduction Mode PFC Controller September 2015 FAN7530 Critical Conduction Mode PFC Controller Features  Low Total Harmonic Distortion (THD)  Precise Adjustable Output Over-Voltage Protection  Open-Feedback Protection and Disable Function  Zero Current Detector  150µs Internal Start-up Timer  MOSFET Over-Current Protection  Under-Voltage Lockout with 3.5V Hysteresis  Low Start-up (40µA) and Operating Current (1.
