FAN5333B, FAN5333A High Current Serial LED Driver

FAN5333B Description

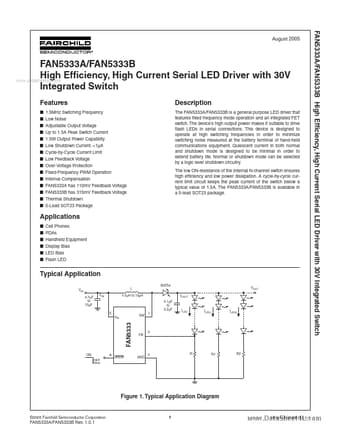

FAN5333A/FAN5333B High Efficiency, High Current Serial LED Driver with 30V Integrated Switch August 2005 FAN5333A/FAN5333B High Efficiency, High Curre.
The FAN5333A/FAN5333B is a general purpose LED driver that features fixed frequency mode operation and an integrated FET switch.

FAN5333B Features

* 1.5MHz Switching Frequency Low Noise Adjustable Output Voltage Up to 1.5A Peak Switch Current 1.5W Output Power Capability Low Shutdown Current:

FAN5333B Applications

* Cell Phones PDAs Handheld Equipment Display Bias LED Bias Flash LED Typical Application VIN 4.7µF to 10µF CIN L 6.8µH to 10µH 0.1µF to 2.2µF 5 VIN SW 1 BAT54 COUT VOUT ILED ILED1 ILED2 FAN5333 FB 3 ON OFF 4 SHDN GND 2 R R1 R2 Figure 1. Typical Appl

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FAN5333B, FAN5333A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FAN5333B, FAN5333A
Manufacturer
Fairchild Semiconductor
File Size
577.24 KB
Datasheet
FAN5333A_FairchildSemiconductor.pdf
Description
High Current Serial LED Driver
Note
This datasheet PDF includes multiple part numbers: FAN5333B, FAN5333A.
Please refer to the document for exact specifications by model.
