FAN5330 High Efficiency Serial LED Driver

FAN5330 Description

FAN5330 High Efficiency Serial LED Driver with 30V Integrated Switch August 2005 FAN5330 High Efficiency Serial LED Driver with 30V Integrated Switch .
The FAN5330 is an LED driver that features fixed frequency mode operation and an integrated FET switch.

FAN5330 Features

* 1.5MHz Switching Frequency Low Noise Adjustable Output Voltage 0.7W Output Power Capability Low Shutdown Current:

FAN5330 Applications

* Cell Phones PDAs Handheld Equipment Display Bias LED Bias Typical Application BAT54 COUT 0.47µF ILED 5 V IN VIN CIN 2.2µF L 6.8µH to 10µH VOUT SW 1 FAN5330 FB 3 ON OFF 4 SHDN GND 2 R Figure 1. Typical Application Diagram ©2005 Fairchild Semiconductor Co

📥 Download Datasheet

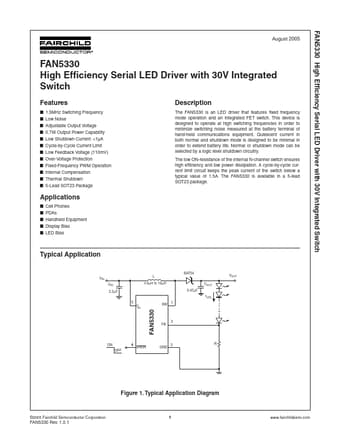

Preview of FAN5330 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FAN5330
Manufacturer
Fairchild Semiconductor
File Size
520.54 KB
Datasheet
FAN5330_FairchildSemiconductor.pdf
Description
High Efficiency Serial LED Driver
