FAN103 Primary-Side-Regulation PWM Controller

FAN103 Description

FAN103 * Primary-Side-Regulation PWM Controller October 2009 FAN103 Primary-Side-Regulation PWM Controller .
This third-generation Primary-Side-Regulation (PSR) and highly integrated PWM controller provides several features to enhance the performance of low-p.

FAN103 Features

* Low Standby Power Under 30mW High Voltage Startup Fewest External Component Counts Constant-Voltage (CV) and Constant-Current (CC) Control without Secondary-Feedback Circuitry Green-Mode Function: Linearly-Decreasing

FAN103 Applications

* A low-cost, smaller and lighter charger results as compared to a conventional design or a linear transformer. To minimize standby power consumption, the proprietary green-mode function provides off-time modulation to linearly decrease PWM frequency under light-load conditions. This green mode assis

📥 Download Datasheet

Preview of FAN103 PDF

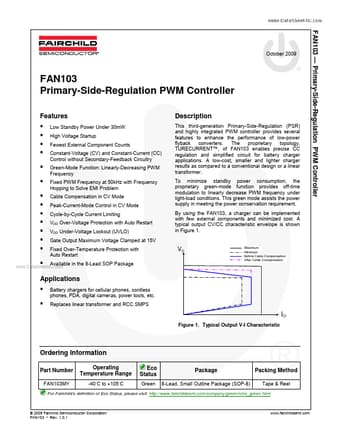

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FAN103
Manufacturer
Fairchild Semiconductor
File Size
0.97 MB
Datasheet
FAN103_FairchildSemiconductor.pdf
Description
Primary-Side-Regulation PWM Controller
