FAN23SV65AMPX - Buck Regulator

Datasheet Summary

Description

The FAN23SV65A is a highly efficient synchronous buck regulator.

The regulator is capable of operating with an input range from 7 V to 24 V and supporting up to 15 A continuous load currents.

Features

  • VIN Range: 7 V to 24 V Using Internal Linear Regulator for Bias.
  • VIN Range: 4.5 V to 5.5 V with VIN/PVIN/PVCC Connected to Bypass Internal Regulator.
  • High Efficiency: Over to 96% Peak.
  • Continuous Output Current: 15 A.
  • Internal Linear Bias Regulator.
  • Accurate Enable Facilitates VIN UVLO Functionality.
  • PFM Mode for Light.
  • Load Efficiency.
  • Excellent Line and Load Transient Response.
  • Precision Reference: ±1% Ove.

📥 Download Datasheet

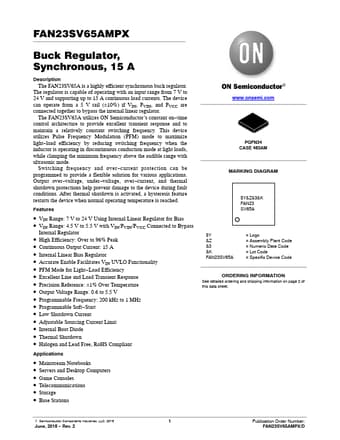

Datasheet preview – FAN23SV65AMPX
