DM96LS02 - Dual Retriggerable Resettable Monostable Multivibrator

Fairchild Semiconductor

📥 Download Datasheet

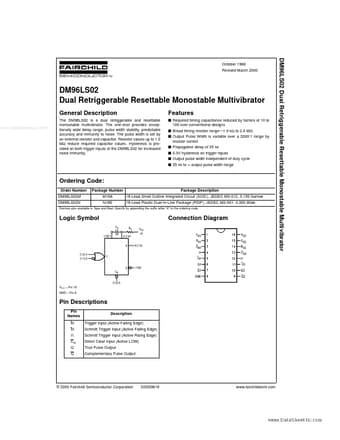

DM96LS02 Datasheet Preview — Preview of DM96LS02 PDF

Datasheet Details

Part number	DM96LS02
Manufacturer	Fairchild Semiconductor
File Size	132.46 KB
Description	Dual Retriggerable Resettable Monostable Multivibrator
Datasheet	DM96LS02_FairchildSemiconductor.pdf

DM96LS02 Product details

Description

www.DataSheet4U.com The DM96LS02 is a dual retriggerable and resettable monostable multivibrator.The one-shot provides exceptionally wide delay range, pulse width stability, predictable accuracy and immunity to noise.The pulse width is set by an external resistor and capacitor.Resistor values up to 1.0 MΩ reduce required capacitor values.Hysteresis is provided on both trigger inputs of the DM96LS02 for increased noise immunity.

Features

s Required timing capacitance reduced by factors of 10 to 100 over conventional designs s Broad timing resistor range.
1.0 kΩ to 2.0 MΩ s Output Pulse Width is variable over a 2000:1 range by resistor control s Propagation delay of 35 ns s 0.3V hysteresis on trigger inputs s Output pulse width independent of duty cycle s 35 ns to ∞ output pulse width range Ordering Code: Order Number DM96LS02M DM96LS02N Package Number M16A N16E Package.
