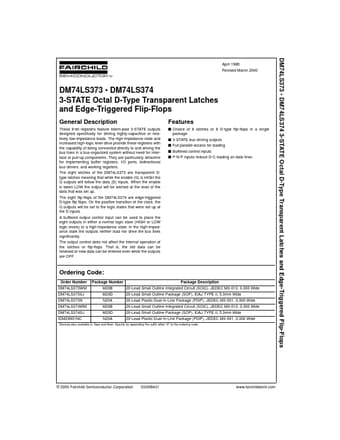

DM74LS374, DM74LS373 - Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops

Fairchild Semiconductor

Datasheet Details

Part number	DM74LS374, DM74LS373
Manufacturer	Fairchild Semiconductor
File Size	88.75 KB
Description	Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops
Datasheet	DM74LS373_FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: DM74LS374, DM74LS373. Please refer to the document for exact specifications by model.

These 8-bit registers feature totem-pole 3-STATE outputs designed specifically for driving highly-capacitive or relatively low-impedance loads.

s Choice of 8 latches or 8 D-type flip-flops in a single package s 3-STATE bus-driving outputs s Full parallel-access for loading s Buffered control inputs s P-N-P inputs reduce D-C loading on data lines Ordering Code: Order Number DM74LS373WM DM74LS373SJ DM74LS373N DM74LS374WM DM74LS374SJ IDM29901NC Package Number M20B M20D N20A M20B M20D N20A Package.
