DM74AS286 - 9-Bit Parity Generator/Checker with Bus-Driver Parity I/O Port

Fairchild Semiconductor

📥 Download Datasheet

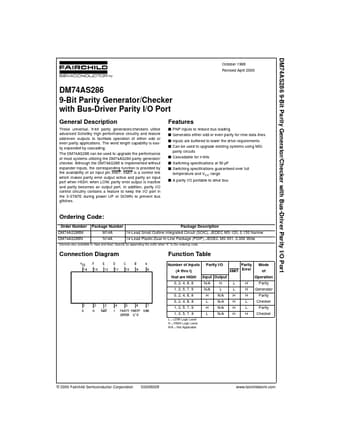

DM74AS286 Datasheet Preview — Preview of DM74AS286 PDF

Datasheet Details

Part number	DM74AS286
Manufacturer	Fairchild Semiconductor
File Size	64.92 KB
Description	9-Bit Parity Generator/Checker with Bus-Driver Parity I/O Port
Datasheet	DM74AS286_FairchildSemiconductor.pdf

DM74AS286 Product details

Description

These universal, 9-bit parity generators/checkers utilize advanced Schottky high performance circuitry and feature odd/even outputs to facilitate operation of either odd or even parity applications.

Features

s PNP inputs to reduce bus loading s Generates either odd or even parity for nine data lines s Inputs are buffered to lower the drive requirements s Can be used to upgrade existing systems using MSI parity circuits s Cascadable for n-bits s Switching specifications at 50 pF s Switching specifications guaranteed over full temperature and VCC range s A parity I/O portable to drive bus Ordering Code: Order Number DM74AS286M DM74AS286N Package Number M14A N14A Package.
