DM74AS240 - 3-STATE Bus Driver/Receiver

Name: DM74AS240
SKU: DM74AS240-232126

Fairchild Semiconductor

📥 Download Datasheet

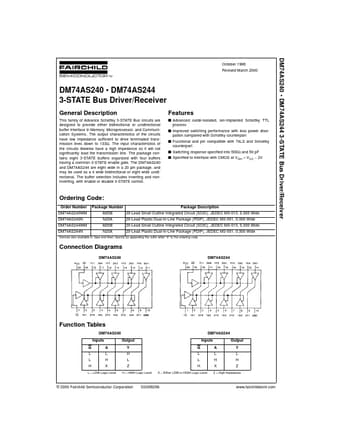

DM74AS240 Datasheet Preview — Preview of DM74AS240 PDF

Datasheet Details

Part number	DM74AS240
Manufacturer	Fairchild Semiconductor
File Size	56.89 KB
Description	3-STATE Bus Driver/Receiver
Datasheet	DM74AS240_FairchildSemiconductor.pdf

DM74AS240 Product details

Description

This family of Advance Schottky 3-STATE Bus circuits are designed to provide either bidirectional or unidirectional buffer interface in Memory, Microprocessor, and Communication Systems.

Features

s Advanced oxide-isolated, ion-implanted Schottky TTL process s Improved switching performance with less power dissipation compared with Schottky counterpart s Functional and pin compatible with 74LS and Schottky counterpart s Switching response specified into 500Ω and 50 pF s Specified to interface with CMOS at VOH = VCC.
2V Ordering Code: Order Number DM74AS240WM DM74AS240N DM74AS244WM DM74AS244N Package Number M20B N20A M20B N20A Package.
