CNY174M, CNY171M - Phototransistor Optocouplers

Fairchild Semiconductor

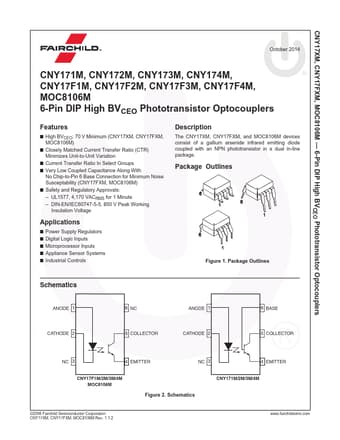

CNY174M Datasheet Preview — This datasheet PDF includes multiple part numbers: CNY174M, CNY171M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CNY174M, CNY171M
Manufacturer	Fairchild ↗ Semiconductor
File Size	307.69 KB
Description	Phototransistor Optocouplers
Datasheet	CNY171M-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CNY174M, CNY171M. Please refer to the document for exact specifications by model.

CNY174M Product details

Description

The CNY17XM, CNY17FXM, and MOC8106M devices consist of a gallium arsenide infrared emitting diode coupled with an NPN phototransistor in a dual in-line package.

Features

High BVCEO: 70 V Minimum (CNY17XM, CNY17FXM, MOC8106M).
Closely Matched Current Transfer Ratio (CTR) Minimizes Unit-to-Unit Variation.
Current Transfer Ratio In Select Groups.
Very Low Coupled Capacitance Along With No Chip-to-Pin 6 Base Connection for Minimum Noise Susceptability (CNY17FXM, MOC8106M).
Safety and Regulatory Approvals:.
UL1577, 4,170 VACRMS for 1 Minute.
DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage.
