1N5819, 1N5817 Datasheet - Fairchild Semiconductor

1N5819, 1N5817, Schottky Barrier Rectifier

1N5817 - 1N5819 * Schottky Barrier Rectifier November 2010 1N5817 - 1N5819 Schottky Barrier Rectifier

Features

* 1.0 ampere operation at TA = 90°C with no thermal runaway.

Applications

* DO-41 plastic case COLOR BAND DENOTES CATHODE Absolute Maximum Ratings
* TA = 25°C unless otherwise noted Symbol Parameter Value Units 1N5817 1N5818 1N5819 VRRM Maximum Repetitive Reverse Voltage 20 30 40 IF(AV) Average Rectified Forward Current .375” lead length @ TA = 90°C 1.0 IFSM

1N5817-FairchildSemiconductor.pdf

This datasheet PDF includes multiple part numbers: 1N5819, 1N5817. Please refer to the document for exact specifications by model.

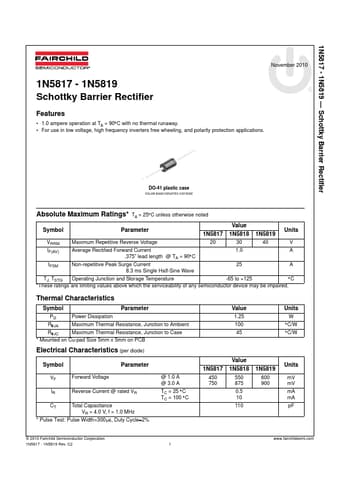

1N5819 Datasheet Preview Page 2 1N5819 Datasheet Preview Page 3

Datasheet Details

Part number:

1N5819, 1N5817

Manufacturer:

Fairchild Semiconductor

File Size:

87.02 KB

Description:

Schottky barrier rectifier.

Note:

This datasheet PDF includes multiple part numbers: 1N5819, 1N5817.
Please refer to the document for exact specifications by model.
