1N5817 - Schottky Barrier Rectifier

1N5817 Description

1N5817 - 1N5819 * Schottky Barrier Rectifier November 2010 1N5817 - 1N5819 Schottky Barrier Rectifier .

1N5817 Features

* 1.0 ampere operation at TA = 90°C with no thermal runaway.

1N5817 Applications

* DO-41 plastic case COLOR BAND DENOTES CATHODE Absolute Maximum Ratings
* TA = 25°C unless otherwise noted Symbol Parameter Value Units 1N5817 1N5818 1N5819 VRRM Maximum Repetitive Reverse Voltage 20 30 40 IF(AV) Average Rectified Forward Current .375” lead length @ TA = 90°C 1.0 IFSM

📥 Download Datasheet

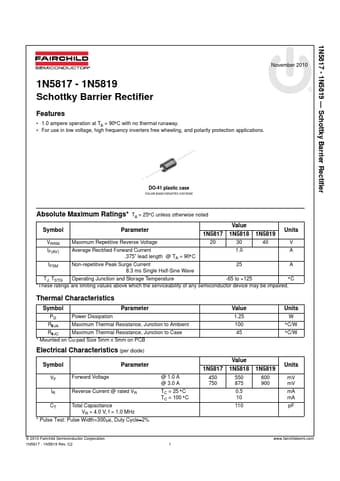

Preview of 1N5817 PDF
