10N20C - FQP10N20C

Fairchild Semiconductor

The 10N20C by Fairchild Semiconductor is a FQP10N20C. Below is the official datasheet preview.

📥 Download Datasheet

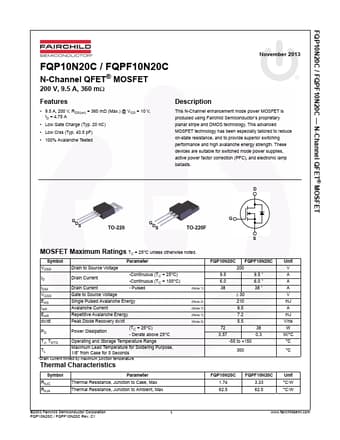

10N20C FQP10N20C by Fairchild Semiconductor - Datasheet Preview — Official preview page of the 10N20C FQP10N20C datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	10N20C
Manufacturer	Fairchild Semiconductor
File Size	731.15 KB
Description	FQP10N20C
Datasheet	10N20C_FairchildSemiconductor.pdf
Additional preview pages of the 10N20C datasheet.

10N20C Product details

Description

This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology.

Features

9.5 A, 200 V, RDS(on) = 360 mΩ (Max. ) @ VGS = 10 V, ID = 4.75 A.
Low Gate Charge (Typ. 20 nC).
Low Crss (Typ. 40.5 pF).
100% Avalanche Tested.
