FRU900-30 - Radial Leaded PTC FRU

Product Overview

Part number	FRU900-30
Manufacturer	FUZETEC
File Size	140.22 KB
Description	Radial Leaded PTC FRU
Datasheet	FRU900-30 Datasheet
Note	This datasheet PDF includes multiple part numbers: FRU900-30, FRU090-30. Please refer to the document for exact specifications by model.
Additional preview pages of the FRU900-30 datasheet.

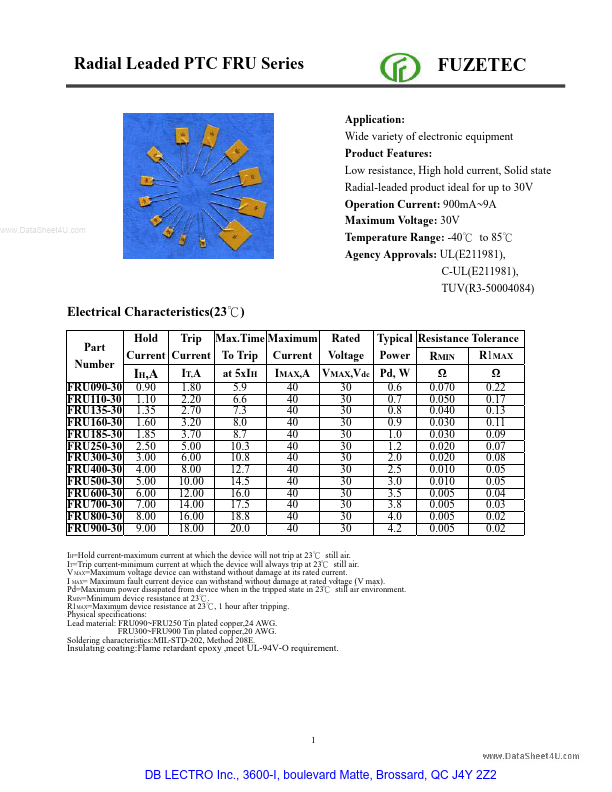

Low resistance, High hold current, Solid state Radial-leaded product ideal for up to 30V Operation Current: 900mA~9A Maximum Voltage: 30V Temperature Range: -40 to 85 Agency Approvals: UL(E211981), C-UL(E211981), TUV(R3-50004084) Part Number Hold Trip Max. Time Maximum Rated Typical Resistance Tolerance Current Current To Trip Current Voltage Power IH,A IT,A at 5xIH IMAX,A VMAX,Vdc Pd, W RMIN Ω R1MAX Ω FRU090-30 0.90 1.80 5.9 40 30 0.6 0.070 0.22 FRU110-30 1.10 2.20 6.6 40 30 0.
