FRU110-30F - Radial Leaded PTC

This page provides the datasheet information for the FRU110-30F, a member of the FRU090-30F Radial Leaded PTC family.

Datasheet Summary

Features

  • Low resistance, High hold current, Solid state Radial-leaded product ideal for up to 30V Operation Current: 0.9A~9.0A Maximum Voltage: 30V к к Temperature Range: -40 to 85 Agency Recognition: UL(E211981) C-UL(E211981) TÜV (R3-50004084) Electrical Characteristics(23к) Hold Trip Max. Time Max. Part Current Current To Trip Current Number FRU090-30F FRU110-30F FRU135-30F FRU160-30F FRU185-30F FRU250-30F FRU300-30F FRU400-30F FRU500-30F FRU600-30F FRU700-30F FRU800-30F FRU900-30F IH, A 0.90 1.10.

📥 Download Datasheet

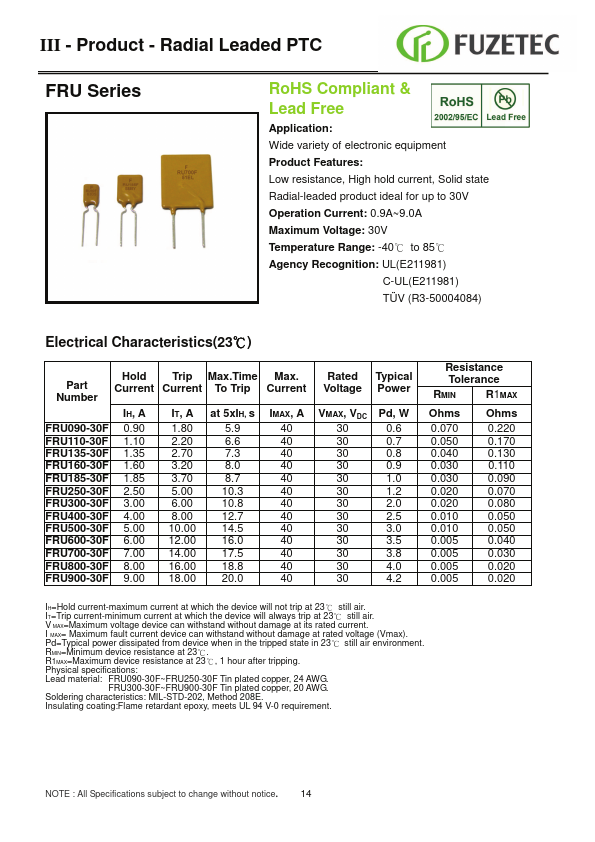

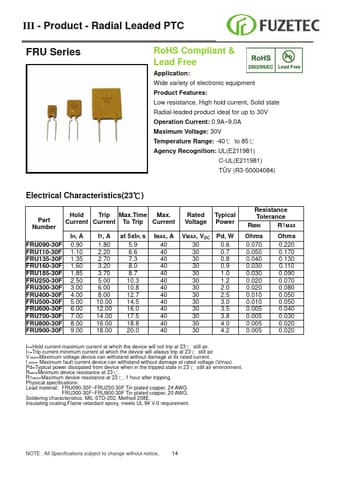

Datasheet preview – FRU110-30F

Datasheet Details

Part number FRU110-30F
Manufacturer FUZETEC
File Size 178.25 KB
Description Radial Leaded PTC
Datasheet download datasheet FRU110-30F Datasheet

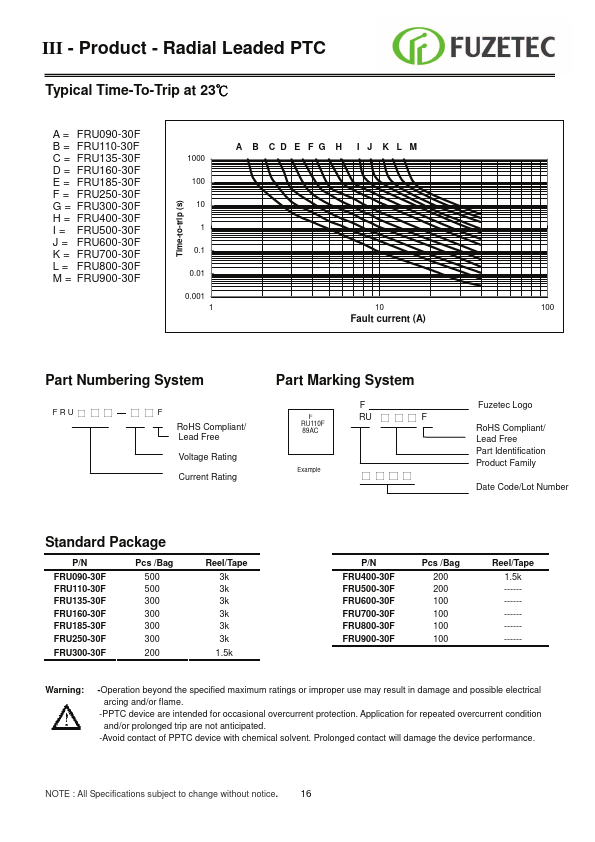

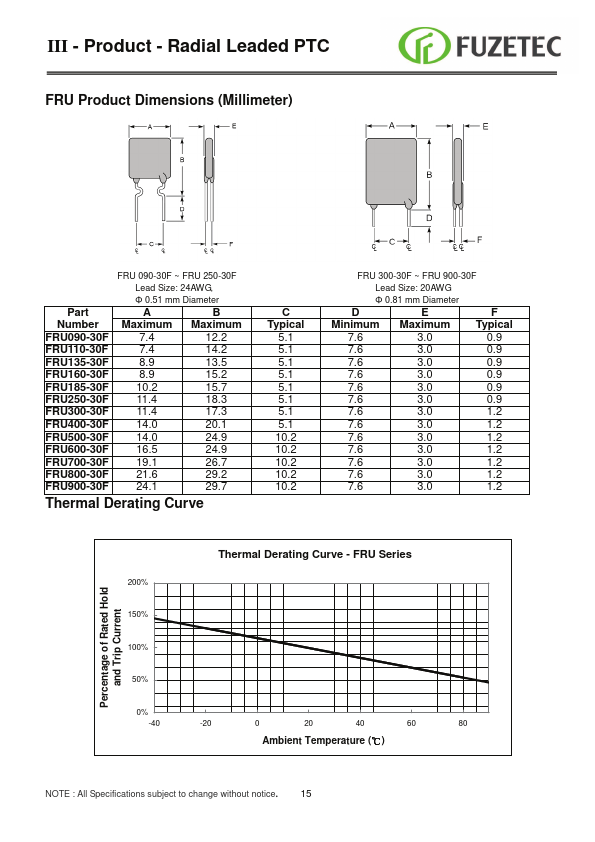

Additional preview pages of the FRU110-30F datasheet.

📁 Similar Datasheet

  • FRU110-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU135-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU160-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU185-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU090-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU20UC30 - FRED (Nihon Inter Electronics)
  • FRU250-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU300-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU400-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU500-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
Other Datasheets by FUZETEC

Full PDF Text Transcription

Click to expand full text
III - Product - Radial Leaded PTC FRU Series RoHS Compliant & Lead Free Application: Wide variety of electronic equipment Product Features: Low resistance, High hold current, Solid state Radial-leaded product ideal for up to 30V Operation Current: 0.9A~9.0A Maximum Voltage: 30V к к Temperature Range: -40 to 85 Agency Recognition: UL(E211981) C-UL(E211981) TÜV (R3-50004084) Electrical Characteristics(23к) Hold Trip Max.Time Max. Part Current Current To Trip Current Number FRU090-30F FRU110-30F FRU135-30F FRU160-30F FRU185-30F FRU250-30F FRU300-30F FRU400-30F FRU500-30F FRU600-30F FRU700-30F FRU800-30F FRU900-30F IH, A 0.90 1.10 1.35 1.60 1.85 2.50 3.00 4.00 5.00 6.00 7.00 8.00 9.00 IT, A 1.80 2.20 2.70 3.20 3.70 5.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 at 5xIH, s 5.9 6.6 7.3 8.
