FRU250-30 - Radial Leaded PTC FRU

This page provides the datasheet information for the FRU250-30, a member of the FRU090-30 Radial Leaded PTC FRU family.

Datasheet Summary

Features

  • Low resistance, High hold current, Solid state Radial-leaded product ideal for up to 30V Operation Current: 900mA~9A Maximum Voltage: 30V Temperature Range: -40 to 85 Agency Approvals: UL(E211981), C-UL(E211981), TUV(R3-50004084) Part Number Hold Trip Max. Time Maximum Rated Typical Resistance Tolerance Current Current To Trip Current Voltage Power IH,A IT,A at 5xIH IMAX,A VMAX,Vdc Pd, W RMIN Ω R1MAX Ω FRU090-30 0.90 1.80 5.9 40 30 0.6 0.070 0.22 FRU110-30 1.10 2.20 6.6 40 30 0.

📥 Download Datasheet

Datasheet preview – FRU250-30

Datasheet Details

Part number FRU250-30
Manufacturer FUZETEC
File Size 140.22 KB
Description Radial Leaded PTC FRU
Datasheet download datasheet FRU250-30 Datasheet
Additional preview pages of the FRU250-30 datasheet.

📁 Similar Datasheet

  • FRU250-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU20UC30 - FRED (Nihon Inter Electronics)
  • FRU090-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU110-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU135-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU160-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU185-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU300-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU400-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
  • FRU500-30 - RADIAL LEADED PTC RESETTABLE FUSE (AiT Semiconductor)
Other Datasheets by FUZETEC

Full PDF Text Transcription

Click to expand full text

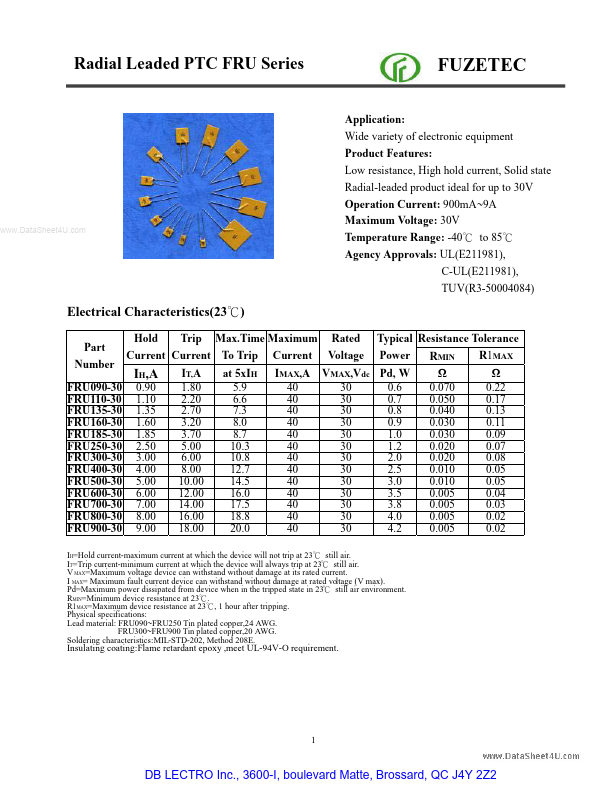

Radial Leaded PTC FRU Series FUZETEC www.DataSheet4U.com Electrical Characteristics(23) Application: Wide variety of electronic equipment Product Features: Low resistance, High hold current, Solid state Radial-leaded product ideal for up to 30V Operation Current: 900mA~9A Maximum Voltage: 30V Temperature Range: -40 to 85 Agency Approvals: UL(E211981), C-UL(E211981), TUV(R3-50004084) Part Number Hold Trip Max.Time Maximum Rated Typical Resistance Tolerance Current Current To Trip Current Voltage Power IH,A IT,A at 5xIH IMAX,A VMAX,Vdc Pd, W RMIN Ω R1MAX Ω FRU090-30 0.90 1.80 5.9 40 30 0.6 0.070 0.22 FRU110-30 1.10 2.20 6.6 40 30 0.7 0.050 0.17 FRU135-30 1.35 2.70 7.3 40 30 0.8 0.040 0.13 FRU160-30 1.60 3.20 8.0 40 30 0.9 0.030 0.11 FRU185-30 1.85 3.70 8.
