SC1001 EL LAMP DRIVER IC

SC1001 Description

SHENZHEN FUMAN ELECTRONICS CO., LTD.SC1001(：S&CIC0549) EL LAMP DRIVER IC GENERAL .
The SC1001 series product is a poly gate CMOS integrated circuit which is designed to drive an electroluminescence Lamp (EL) to light.

SC1001 Features

* Economical solution for EL display.
* CMOS process and low power consumption.
* No external component needed for delay function.

SC1001 Applications

* C 3MH 21 Ohm 1N4148 10K C0 2N5551 2N5551 EL DISPLAY K1 B IND EL VDD TG TST1 SC1001 TST2 FLSH ALM VSS K2 K3 C1 3V or 1.5V 0.01-0.1uF 0.001-0.1uF Note: 1. Substrate is connector to VDD. 2. The wires connected to TG and ALM cannot across the lines lnside the black dote line box. Furthermore,

📥 Download Datasheet

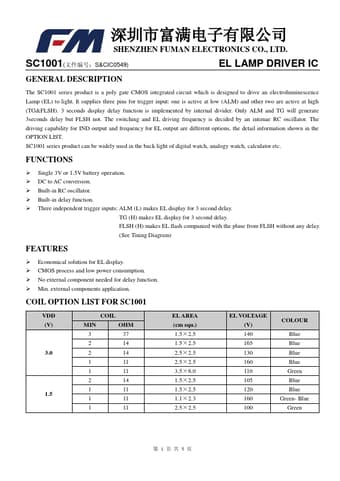

Preview of SC1001 PDF
