SC1001A 10 CHARACTERS x 1 LINES DISPLAY

SC1001A Description

SC1001A ( 10 CHARACTERS x 1 LINES ) * .

SC1001A Features

* 5 x 7 DOTS WITH CURSOR
* BUILT-IN CONTROLLER (KS0066 OR EQUIVALENT)
* 2.7〜5.5 V POWER SUPPLY
* 1/16 DUTY CYCLE
* 8-BIT PARALLEL INTERFACE
* MECHANICAL DATA ITEM DIMENSIONS Module Size (W x H x T) 80.0 x 36.0 x 8.8 ( 12.7 LED ) Viewing Area ( W x H ) 65.0 x 16.0 Char

📥 Download Datasheet

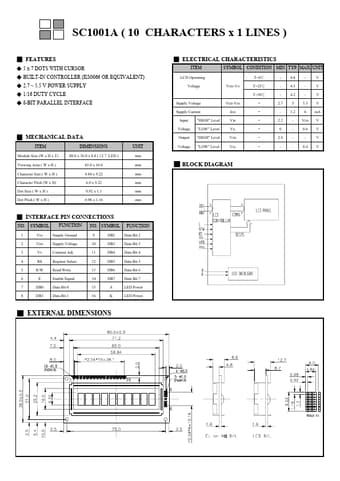

Preview of SC1001A PDF

Datasheet Details

Part number
SC1001A
Manufacturer
ETC
File Size
108.03 KB
Datasheet
SC1001A-ETC.pdf
Description
10 CHARACTERS x 1 LINES DISPLAY
