FMA3014 - MMIC LIMITING AMPLIFIER

Description

The FMA3014 is a high performance 12.716GHz Gallium Arsenide monolithic amplifier.

It is suitable for use in broadband communication and electronic warfare applications.

The FMA3014 is ideally suited as a limiting amplifier where output power is invariant of input power.

Features

  • Self-Biased Single Supply 32dB Gain 17dBm Output pHEMT Technology Input Return Loss < -15dB Output Return Loss < -12dB Preliminary Datasheet v2.1.

📥 Download Datasheet

Datasheet Details

Part number FMA3014
Manufacturer FILTRONIC
File Size 221.09 KB
Description MMIC LIMITING AMPLIFIER
Datasheet download datasheet FMA3014 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FMA3019QFN HIGH LINEARITY INTEGRATED BALANCED AMPLIFIER MODULE Filtronic Compound Semiconductors
FMA3007 2-20GHZ BROADBAND MMIC AMPLIFIER Filtronic Compound Semiconductors
FMA3A Emitter common Rohm
FMA1 General purpose (dual digital transistors) Rohm
FMA1-06025 EC AXIAL FAN Qualtek

Other Datasheets by FILTRONIC

Part Number Description
FMA3011 MMIC POWER AMPLIFIER
FMA3016-QFN High Power Amplifier
FMA3018QFN MEDIUM LINEARITY INTEGRATED BALANCED AMPLIFIER MODULE
FMA3008 BROADBAND MMIC AMPLIFIER
FMA3009 BROADBAND MMIC AMPLIFIER

Full PDF Text Transcription

Click to expand full text

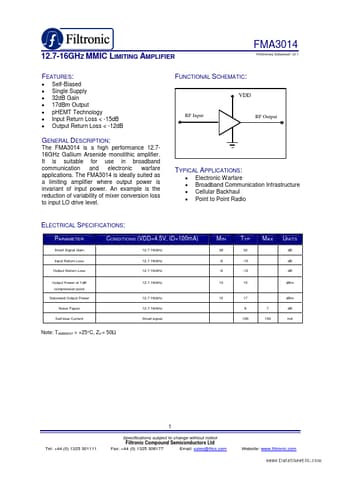

FMA3014 12.7-16GHZ MMIC LIMITING AMPLIFIER FEATURES: • • • • • • • Self-Biased Single Supply 32dB Gain 17dBm Output pHEMT Technology Input Return Loss < -15dB Output Return Loss < -12dB Preliminary Datasheet v2.1 FUNCTIONAL SCHEMATIC: VDD RF Input RF Output GENERAL DESCRIPTION: The FMA3014 is a high performance 12.716GHz Gallium Arsenide monolithic amplifier. It is suitable for use in broadband communication and electronic warfare applications. The FMA3014 is ideally suited as a limiting amplifier where output power is invariant of input power. An example is the reduction of variability of mixer conversion loss to input LO drive level.
