DB105G - 1.0A Glass Passivated Bridge Rectifier

Product Overview

📥 Download Datasheet

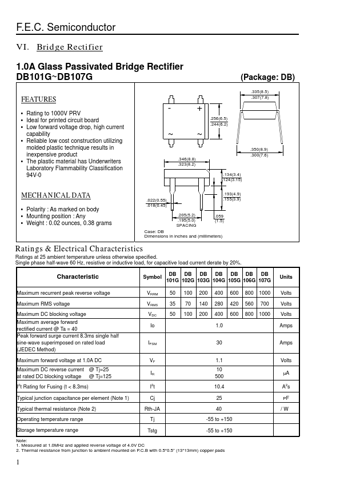

DB105G 1.0A Glass Passivated Bridge Rectifier by FEC Semiconductor - Datasheet Preview — Datasheet preview – DB105G

Datasheet Details

Part number	DB105G
Manufacturer	FEC Semiconductor
File Size	136.98 KB
Description	1.0A Glass Passivated Bridge Rectifier
Datasheet	DB105G Datasheet
Note	This datasheet PDF includes multiple part numbers: DB105G, DB101G. Please refer to the document for exact specifications by model.
Additional preview pages of the DB105G datasheet.

Product details

Features

Rating to 1000V PRV Ideal for printed circuit board Low forward voltage drop, high current capability Reliable low cost construction utilizing molded plastic technique results in inexpensive product The plastic material has Underwriters Laboratory Flammability Classification 94V-0 -+ .335(8.5) .307(7.8) .256(6.5) .244(6.2) ~~ .346(8.8) .323(8.2) .350(8.9) .300(7.6) .134(3.4) .124(3.15).
