XR16M670 - 1.62V TO 3.63V HIGH PERFORMANCE UART

Exar

📥 Download Datasheet

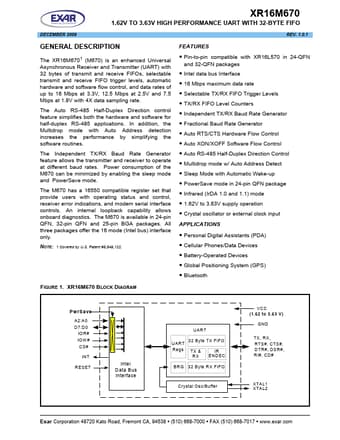

XR16M670 Datasheet Preview — Preview of XR16M670 PDF

Datasheet Details

Part number	XR16M670
Manufacturer	Exar
File Size	482.36 KB
Description	1.62V TO 3.63V HIGH PERFORMANCE UART
Datasheet	XR16M670-Exar.pdf

XR16M670 Product details

Description

The XR16M6701 (M670) is an enhanced Universal Asynchronous Receiver and Transmitter (UART) with 32 bytes of transmit and receive FIFOs, selectable transmit and receive FIFO trigger levels, automatic hardware and software flow control, and data rates of up to 16 Mbps at 3.3V, 12.5 Mbps at 2.5V and 7.5 Mbps at 1.8V with 4X data sampling rate.

Features

Pin-to-pin compatible with XR16L570 in 24-QFN and 32-QFN packages.
Intel data bus Interface.
16 Mbps maximum data rate.
Selectable TX/RX FIFO Trigger Levels.
TX/RX FIFO Level Counters.
Independent TX/RX Baud Rate Generator.
Fractional Baud Rate Generator.
Auto RTS/CTS Hardware Flow Control.
Auto XON/XOFF Software Flow Control.
Auto RS-485 Half-Duplex Direction Control.
Multidrop mode w/ Auto Addre.
