XR16L2552 - 2.25V TO 5.5V DUART

XR16L2552 Description

www.DataSheet4U.com xr MAY 2005 XR16L2552 2.25V TO 5.5V DUART WITH 16-BYTE FIFO REV.1.1.1 GENERAL .
The XR16L2552 (L2552) is a dual universal asynchronous receiver and transmitter (UART) with 5 volt tolerant inputs.

XR16L2552 Features

* 2.25 to 5.5 Volt Operation
* 5 Volt Tolerant Inputs
* Pin-to-pin and functionally compatible to National PC16552
* Pin-to-pin Compatible to Exar’s ST16C2552, XR16L2752 and XR16C2852 in the 44-PLCC
* 2 Independent UART Channels

XR16L2552 Applications

* Portable Appliances
* Telecommunication Network Routers
* Ethernet Network Routers
* Cellular Data Devices
* Factory Automation and Process Controls FIGURE 1. XR16L2552 BLOCK DIAGRAM Up to 3.125Mbps with external clock of 50 MHz Register Set Compatible to

📥 Download Datasheet

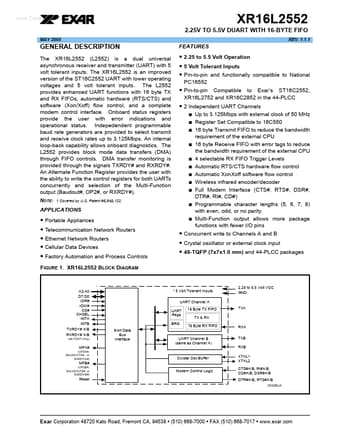

Preview of XR16L2552 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XR16L2552
Manufacturer
Exar Corporation
File Size
563.99 KB
Datasheet
XR16L2552_ExarCorporation.pdf
Description
2.25V TO 5.5V DUART
