XR16C2552 - 2.97V TO 5.5V DUAL UART

Exar Corporation

📥 Download Datasheet

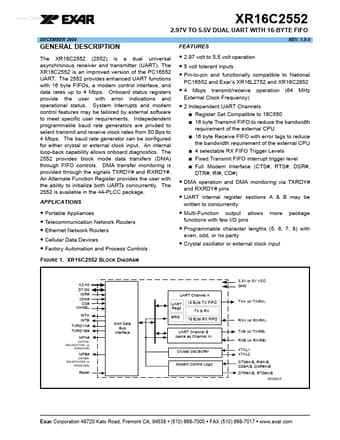

XR16C2552 Datasheet Preview — Preview of XR16C2552 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	XR16C2552
Manufacturer	Exar Corporation
File Size	531.32 KB
Description	2.97V TO 5.5V DUAL UART
Datasheet	XR16C2552_ExarCorporation.pdf

XR16C2552 Product details

Description

The XR16C2552 (2552) is a dual universal asynchronous receiver and transmitter (UART).

Features

may be tailored by external software to meet specific user requirements. Indepedendent programmable baud rate generators are privded to select transmit and receive clock rates from 50 Bps to 4 Mbps. The baud rate generator can be configured for either crystal or external clock input. An internal loop-back capability allows onboard diagnostics. The 2552 provides block mode data transfers (DMA) through FIFO controls. DMA transfer monitoring is provided through the signals TXRDY# and RXRDY#. An Alt.
