IRM-8601M2-2 - Infrared Receiver Module

Datasheet Summary

Description

The IRM-8601M2-x devices are DIP type infrared receivers which have been developed and designed by using the latest IC technology.

Features

‧ High protection ability against EMI ‧ Ellipsoid lens for improved reception characteristics ‧ Available for various carrier frequencies ‧ Min burst length: 10 cycles ‧ Min gap length: 14 cycles ‧ Low operating voltage and low power consumption ‧ High immunity against ambient light ‧ High immunity against TFT backlight ‧ Long reception range ‧ High sensitivity ‧ Pb free and RoHS compliant.

Datasheet Details

Part number	IRM-8601M2-2
Manufacturer	Everlight Electronics
File Size	245.04 KB
Description	Infrared Receiver Module
Datasheet	IRM-8601M2-2 Datasheet

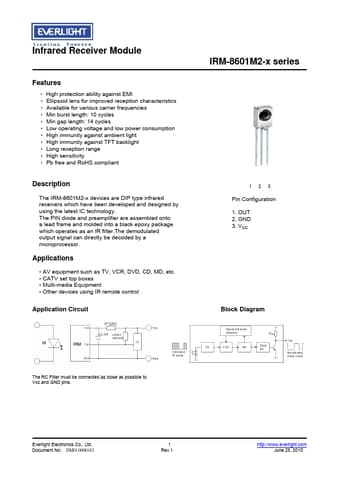

Additional preview pages of the IRM-8601M2-2 datasheet.
