IRM-8601M2, IRM-8601M2-2 Infrared Receiver Module

IRM-8601M2 Description

Infrared Receiver Module .
The IRM-8601M2-x devices are DIP type infrared receivers which have been developed and designed by using the latest IC technology.

IRM-8601M2 Features

* ‧ High protection ability against EMI ‧ Ellipsoid lens for improved reception characteristics ‧ Available for various carrier frequencies ‧ Min burst length: 10 cycles ‧ Min gap length: 14 cycles ‧ Low operating voltage and low power consumption ‧ High immunity against ambient light ‧ High immunity

IRM-8601M2 Applications

* AV equipment such as TV, VCR, DVD, CD, MD, etc.
* CATV set top boxes
* Multi-media Equipment
* Other devices using IR remote control Application Circuit IRM-8601M2-x series 123 Pin Configuration 1. OUT 2. GND 3. VCC Block Diagram The RC Filter must be connected as

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRM-8601M2, IRM-8601M2-2. Please refer to the document for exact specifications by model.

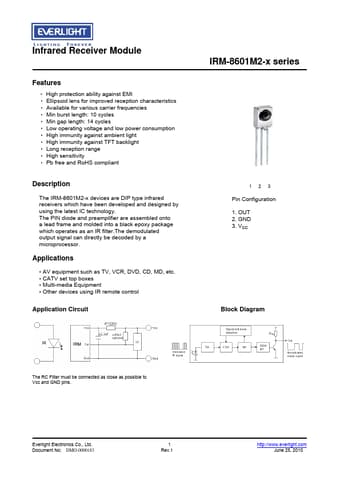

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRM-8601M2, IRM-8601M2-2
Manufacturer
Everlight Electronics
File Size
245.04 KB
Datasheet
IRM-8601M2-2-EverlightElectronics.pdf
Description
Infrared Receiver Module
Note
This datasheet PDF includes multiple part numbers: IRM-8601M2, IRM-8601M2-2.
Please refer to the document for exact specifications by model.
