EUM6820 - 100mA Current Sink VCM Driver

Product Overview

Eutech Microelectronics

Part number	EUM6820
Manufacturer	Eutech Microelectronics
File Size	606.63 KB
Description	100mA Current Sink VCM Driver
Datasheet	EUM6820 Datasheet

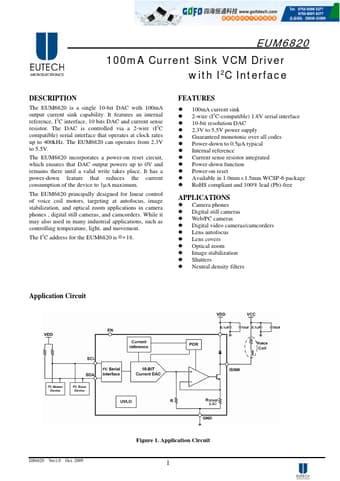

Additional preview pages of the EUM6820 datasheet.

The EUM6820 is a single 10-bit DAC with 100mA output current sink capability.

an internal reference, I2C interface, 10 bits DAC and current sense resistor. The DAC is controlled via a 2-wire (I2C compatible) serial interface that operates at clock rates up to 400kHz. The EUM6820 can operates from 2.3V to 5.5V. The EUM6820 incorporates a power-on reset circuit, which ensures that DAC output powers up to 0V and remains there until a valid write takes place. It has a power-down feature that reduces the current consumption of the device to 1µA maximum. The EUM6820 principally.
