ET9235 - Optimum CMOS IC

Name: ET9235
SKU: ET9235-897418

Etek Microelectronics

The ET9235 by Etek Microelectronics is a Optimum CMOS IC. Below is the official datasheet preview.

Datasheet Details

Part number	ET9235
Manufacturer	Etek Microelectronics
File Size	154.36 KB
Description	Optimum CMOS IC
Datasheet	ET9235-EtekMicroelectronics.pdf

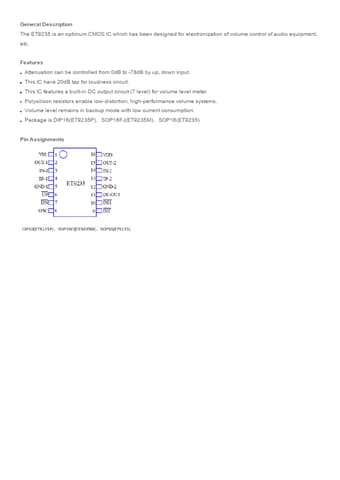

Additional preview pages of the ET9235 datasheet.

The ET9235 is an optimum CMOS IC which has been designed for electronization of volume control of audio equipment, etc.

Attenuation can be controlled from 0dB to 78dB by up, down input. This IC have 20dB tap for loudness circuit. This IC features a builtin DC output circuit (7 level) for volume level meter. Polysilicon resistors enable lowdistortion, highperformance volume systems. Volume level remains in backup mode with low current consumption. Package is DIP16(ET9235P)、SOP16FJ(ET9235M)、SOP16(ET9235) Pin Assignments.
