SP850S, SP820S Schottky Barrier Rectifiers

Eris

Description

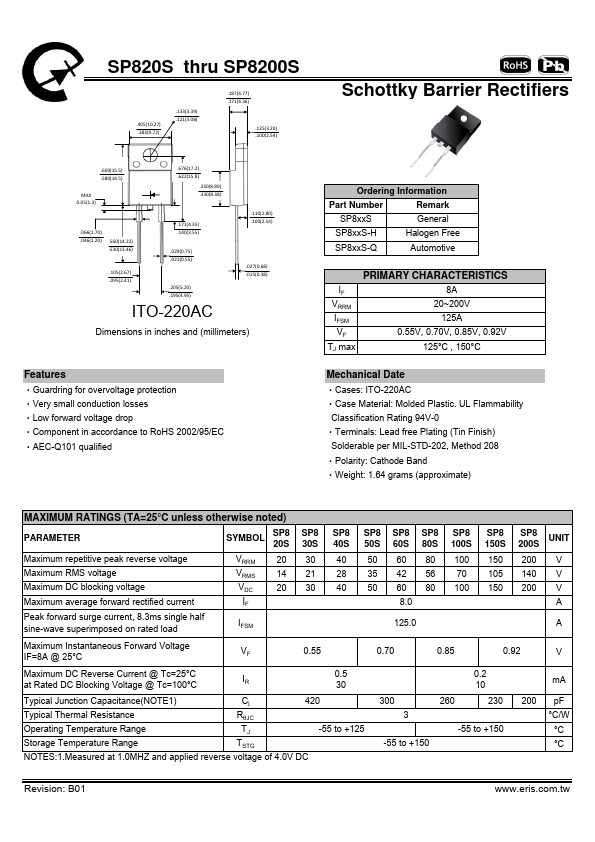

SP820S thru SP8200S .405(10.27) .383(9.72) .133(3.39) .121(3.08) .187(4.77) .171(4.36) .125(3.20) .100(2.54) Schottky Barrier Rectifiers .600(15..

📥 Download Datasheet

SP850S Datasheet Preview — This datasheet PDF includes multiple part numbers: SP850S, SP820S. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SP850S, SP820S
Manufacturer: Eris
File Size: 230.31 KB
Datasheet: SP820S-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SP850S, SP820S.
Please refer to the document for exact specifications by model.

Features

* ‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part Number SP8xxS Remark General SP8xxS-H Halogen Free SP8xxS-Q Automotive PRIMARY CHARACTERISTICS IF 8A VRRM
