SP830S, SP820S Schottky Barrier Rectifiers

SP830S Description

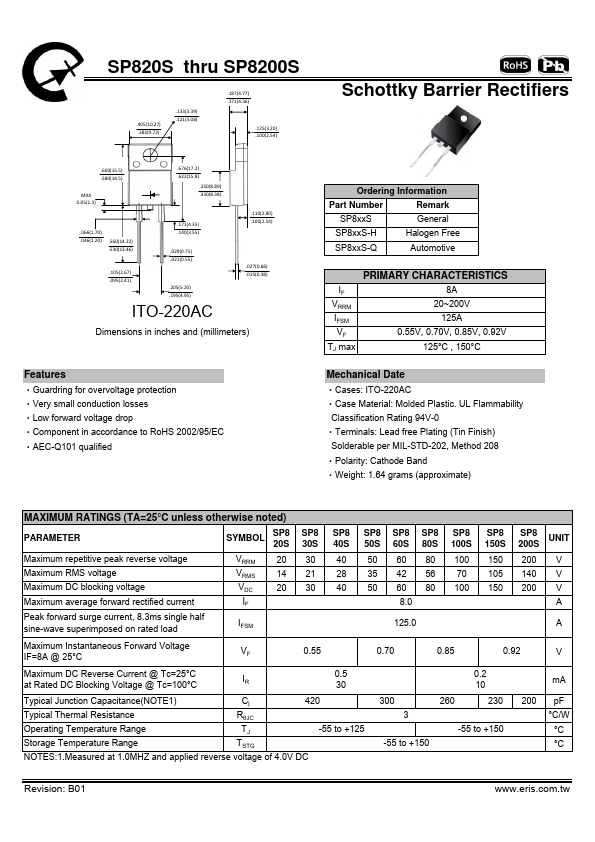

SP820S thru SP8200S .405(10.27) .383(9.72) .133(3.39) .121(3.08) .187(4.77) .171(4.36) .125(3.20) .100(2.54) Schottky Barrier Rectifiers .600(15..

SP830S Features

* ‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part Number SP8xxS Remark General SP8xxS-H Halogen Free SP8xxS-Q Automotive PRIMARY CHARACTERISTICS IF 8A VRRM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SP830S, SP820S. Please refer to the document for exact specifications by model.

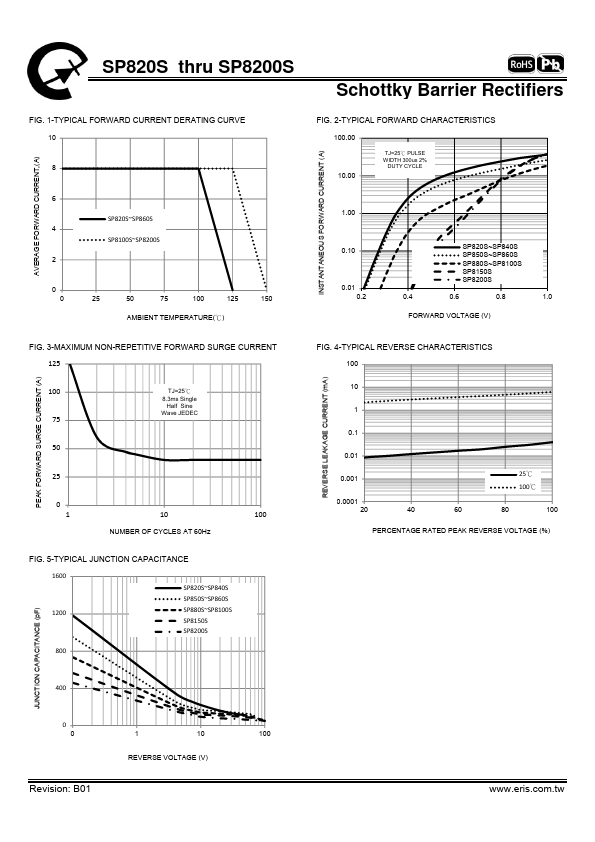

datasheet Preview Page 2

Datasheet Details

Part number
SP830S, SP820S
Manufacturer
Eris
File Size
230.31 KB
Datasheet
SP820S-Eris.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SP830S, SP820S.
Please refer to the document for exact specifications by model.
