SM880C, SM820C Schottky Barrier Rectifiers

Eris

Description

SM820C thru SM8200C Schottky Barrier Rectifiers Device P/N Part Number SM8xxxC SM8xxxC-H SM8xxxC-Q Remark General Halogen Free Automotive DO-214AB.

📥 Download Datasheet

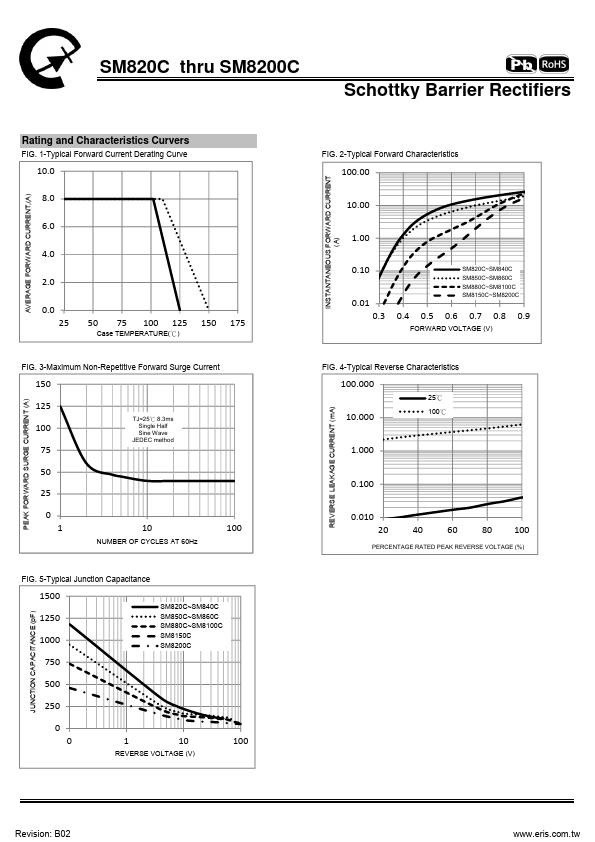

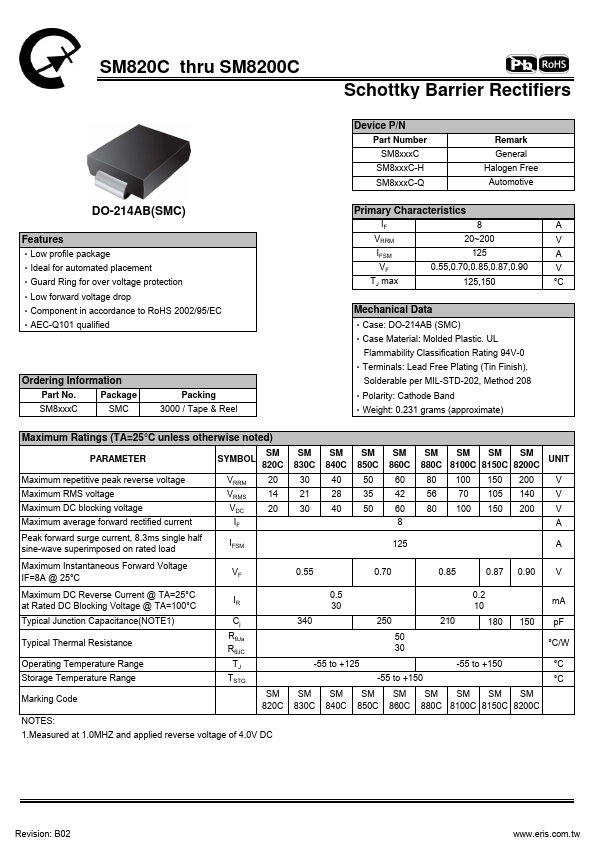

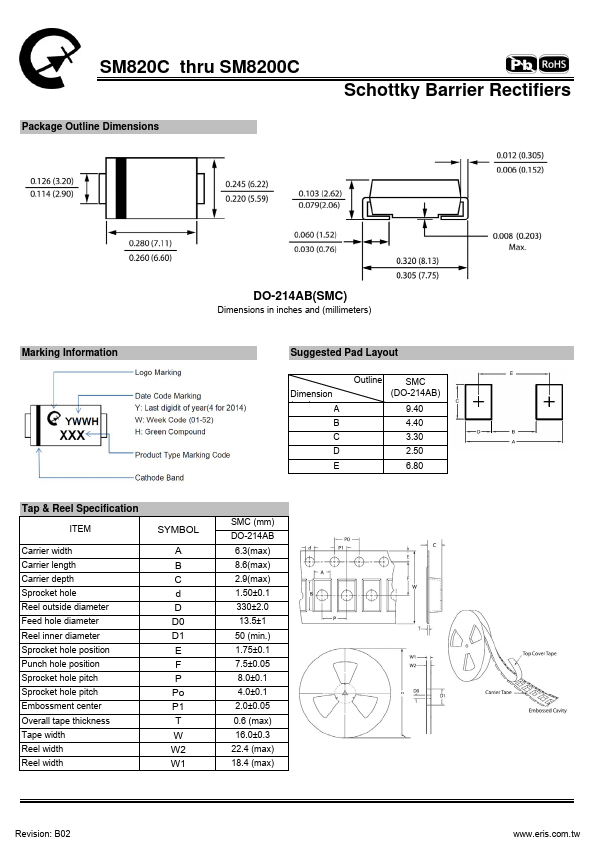

SM880C Datasheet Preview — This datasheet PDF includes multiple part numbers: SM880C, SM820C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SM880C, SM820C
Manufacturer: Eris
File Size: 324.54 KB
Datasheet: SM820C-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SM880C, SM820C.
Please refer to the document for exact specifications by model.

Features

* ‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part No. SM8xxxC Package SMC Packing 3000 / Tape & Reel Primary Characteristics IF 8 A V
