S8MBG036 60V N+P Dual Channel MOSFET

S8MBG036 Description

S8MBG036 60V N+P Dual Channel MOSFETs General .
These N+P dual Channel enhancement mode power field effect transistors are using trench DMOS technology.

S8MBG036 Features

* ‧Fast Switching ‧Green Device Available SOP-8 Pin Configuration D2D2 D1 D1 G1 S1G1S2G2 D1 D2 G2 S1 S2 Absolute Maximum Ratings TC=25oC unless otherwise noted Symbol Parameter VDS Drain-Source Voltage VGS Gate-Source Voltage ID Drain Current - Continuous (TA=25oC) IDM Drain Current

📥 Download Datasheet

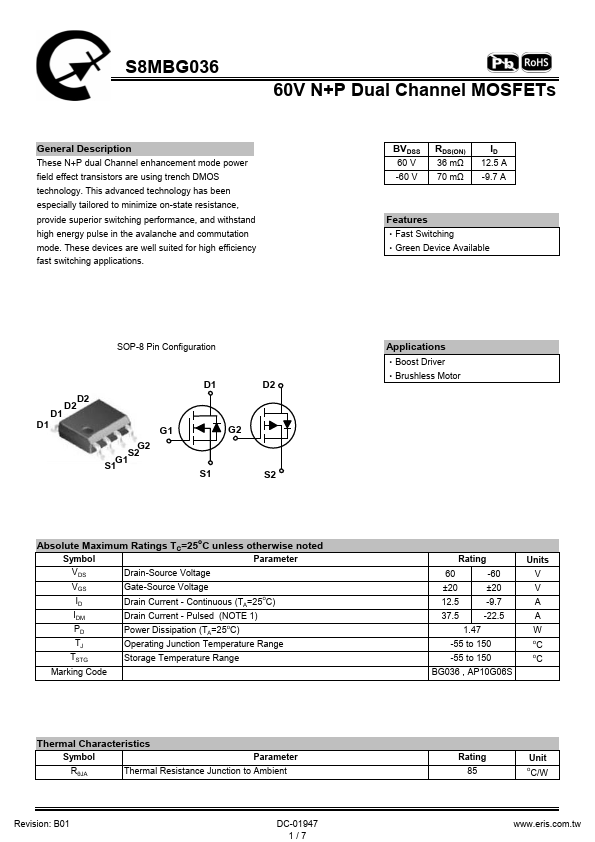

Preview of S8MBG036 PDF

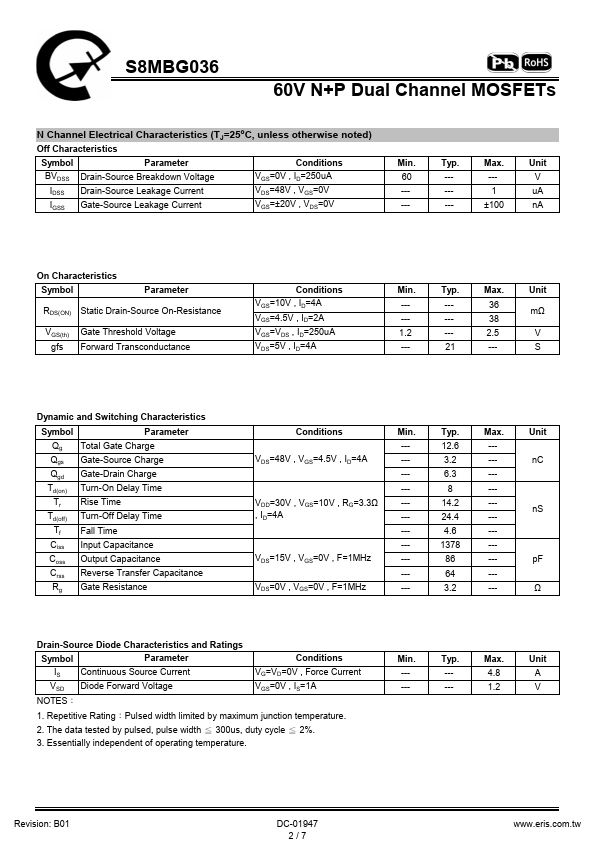

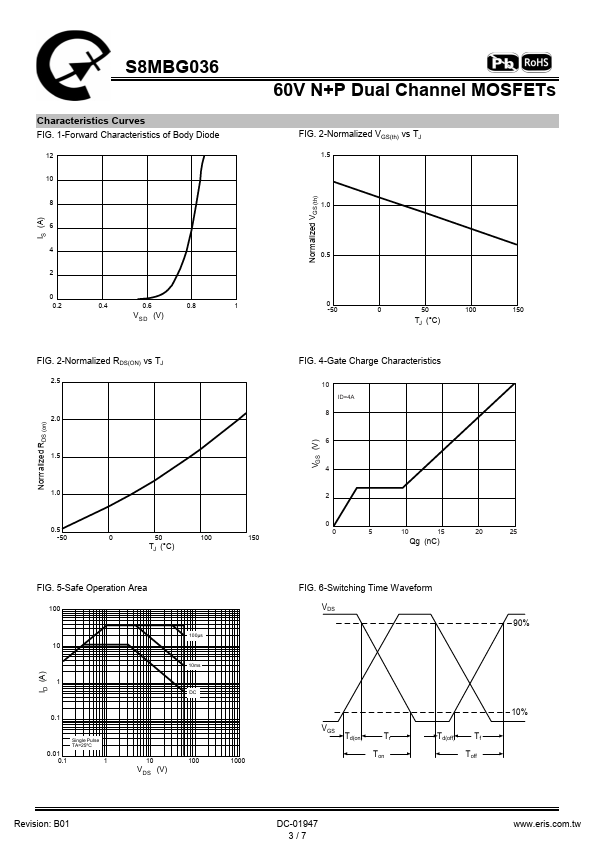

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S8MBG036
Manufacturer
Eris
File Size
163.79 KB
Datasheet
S8MBG036-Eris.pdf
Description
60V N+P Dual Channel MOSFET
