EN25QH32B-2B - 32 Megabit Serial Flash Memory

Eon

📥 Download Datasheet

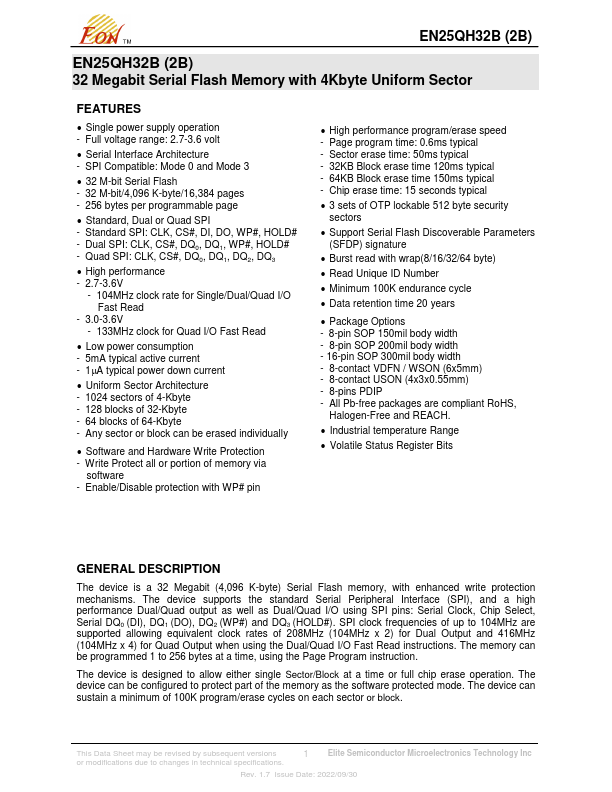

EN25QH32B-2B Datasheet Preview — Preview of EN25QH32B-2B PDF

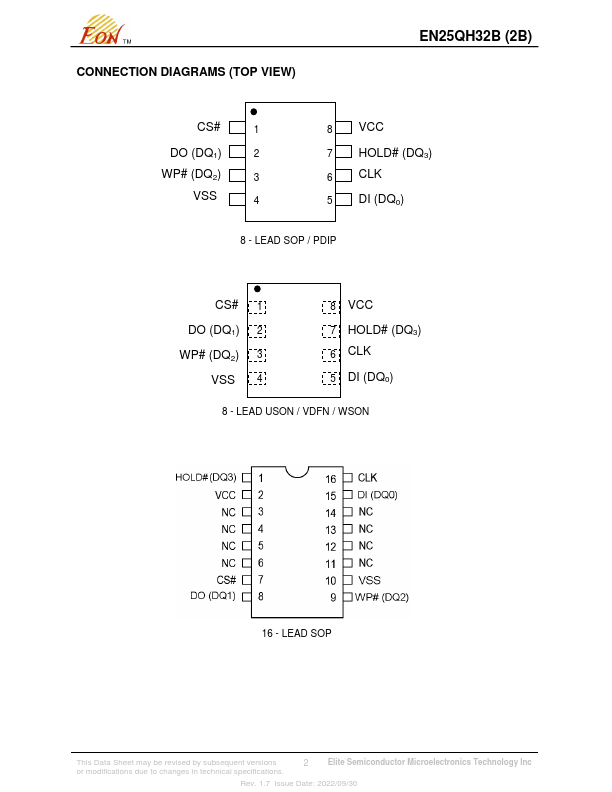

datasheet Preview Page 2

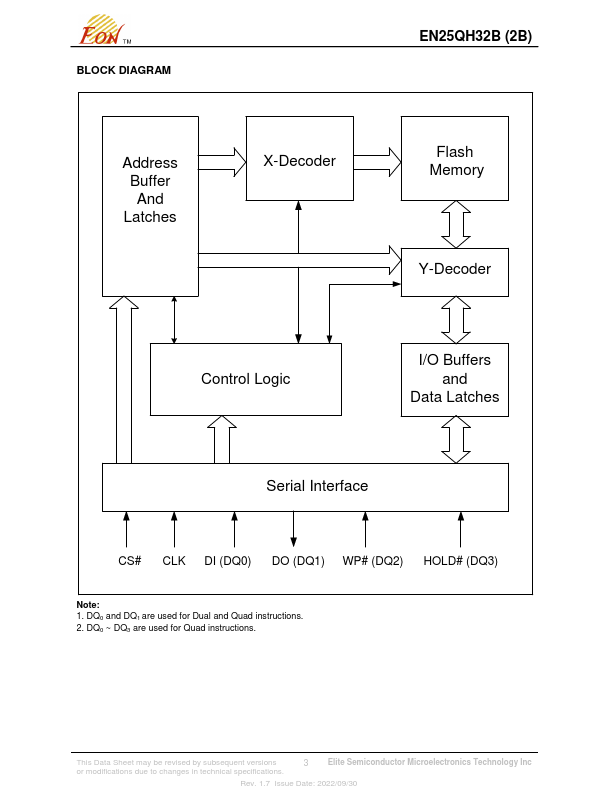

datasheet Preview Page 3

Datasheet Details

Part number	EN25QH32B-2B
Manufacturer	Eon
File Size	2.06 MB
Description	32 Megabit Serial Flash Memory
Datasheet	EN25QH32B-2B-Eon.pdf

EN25QH32B-2B Product details

Description

The device is a 32 Megabit (4,096 K-byte) Serial Flash memory, with enhanced write protection mechanisms.

Features

Single power supply operation - Full voltage range: 2.7-3.6 volt.
Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3.
32 M-bit Serial Flash - 32 M-bit/4,096 K-byte/16,384 pages - 256 bytes per programmable page.
Standard, Dual or Quad SPI - Standard SPI: CLK, CS#, DI, DO, WP#, HOLD# - Dual SPI: CLK, CS#, DQ0, DQ1, WP#, HOLD# - Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3.
High performance - 2.7-3.6V - 104MHz clock rate for Single/Dual/Quad I/O Fast Read - 3.0-3.
