HB54A5129F1U - 512MB Registered DDR SDRAM DIMM

General Description

The HB54A5129F1U is a 64M × 72 × 1 bank Double Data Rate (DDR) SDRAM Module, mounted 18 pieces of 256Mbits DDR SDRAM (HM5425401BTT) sealed in TSOP package, 1 piece of PLL clock driver, 2 pieces of register driver and 1 piece of serial EEPROM (2k bits EEPROM) for Presence Detect (PD).

Key Features

  • 184-pin socket type package (dual lead out)  Outline: 133.35mm (Length) × 30.48mm (Height) × 4.00mm (Thickness)  Lead pitch: 1.27mm.
  • 2.5V power supply (VCC/VCCQ).
  • SSTL-2 interface for all inputs and outputs.
  • Clock frequency: 143MHz/133MHz/125MHz (max. ).
  • Data inputs and outputs are synchronized with DQS.
  • 4 banks can operate simultaneously and independently (Component).
  • Burst read/write operation.
  • Programmable burst length:.

📥 Download Datasheet

Datasheet Details

Part number HB54A5129F1U
Manufacturer Elpida Memory
File Size 186.18 KB
Description 512MB Registered DDR SDRAM DIMM
Datasheet download datasheet HB54A5129F1U Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HB5-433BG LED ETC
HB5-433BG-B LED ETC
HB5-433BG-C LED ETC
HB5-433CG LED ETC
HB5-433CG-B LED ETC

Other Datasheets by Elpida Memory

Part Number Description
HB54A5129F1U-10B 512MB Registered DDR SDRAM DIMM
HB54A5129F1U-A75B 512MB Registered DDR SDRAM DIMM
HB54A5129F1U-B75B 512MB Registered DDR SDRAM DIMM
HB54A5129F1 512MB Registered DDR SDRAM DIMM
HB54A5129F1-10B 512MB Registered DDR SDRAM DIMM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

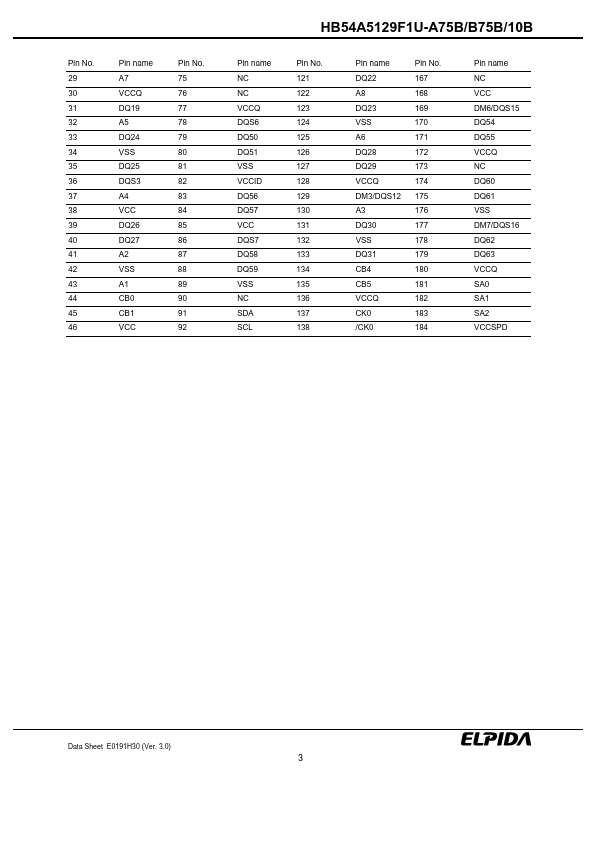

DATA SHEET 512MB Registered DDR SDRAM DIMM HB54A5129F1U-A75B/B75B/10B (64M words × 72 bits, 1 Bank) Description The HB54A5129F1U is a 64M × 72 × 1 bank Double Data Rate (DDR) SDRAM Module, mounted 18 pieces of 256Mbits DDR SDRAM (HM5425401BTT) sealed in TSOP package, 1 piece of PLL clock driver, 2 pieces of register driver and 1 piece of serial EEPROM (2k bits EEPROM) for Presence Detect (PD). Read and write operations are performed at the cross points of the CK and the /CK. This high-speed data transfer is realized by the 2-bit prefetch-pipelined architecture. Data strobe (DQS) both for read and write are available for high speed and reliable data bus design. By setting extended mode register, the on-chip Delay Locked Loop (DLL) can be set enable or disable.
