EDD2504AKTA-E - 256M bits DDR SDRAM (64M words x 4 bits)

Product Overview

Elpida Memory

📥 Download Datasheet

EDD2504AKTA-E 256M bits DDR SDRAM (64M words x 4 bits) by Elpida Memory - Datasheet Preview — Datasheet preview – EDD2504AKTA-E

Datasheet Details

Part number	EDD2504AKTA-E
Manufacturer	Elpida Memory
File Size	597.61 KB
Description	256M bits DDR SDRAM (64M words x 4 bits)
Datasheet	EDD2504AKTA-E Datasheet

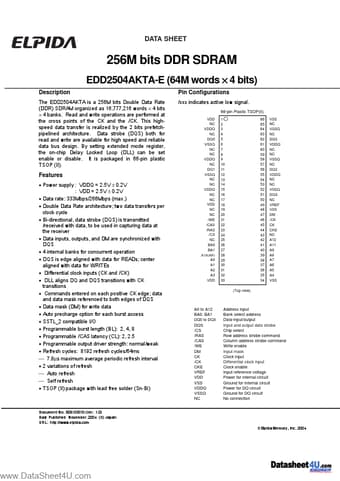

Additional preview pages of the EDD2504AKTA-E datasheet.

Product details

Description

The EDD2504AKTA is a 256M bits Double Data Rate (DDR) SDRAM organized as 16,777,216 words × 4 bits × 4 banks.

Features

Power supply : VDDQ = 2.5V ± 0.2V : VDD = 2.5V ± 0.2V.
Data rate: 333Mbps/266Mbps (max. ).
Double Data Rate architecture; two data transfers per clock cycle.
Bi-directional, data strobe (DQS) is transmitted /received with data, to be used in capturing data at the receiver.
Data inputs, outputs, and DM are synchronized with DQS.
4 internal banks for concurrent operation.
DQS is edge aligned with data for READs; center aligned with dat.
