EDD2508AKTA-5-E - 256M bits DDR SDRAM (32M words x 8 bits DDR400)

Elpida Memory

The EDD2508AKTA-5-E by Elpida Memory is a 256M bits DDR SDRAM (32M words x 8 bits DDR400). Below is the official datasheet preview.

Datasheet Details

Part number	EDD2508AKTA-5-E
Manufacturer	Elpida Memory
File Size	594.98 KB
Description	256M bits DDR SDRAM (32M words x 8 bits DDR400)
Datasheet	EDD2508AKTA-5-E_ElpidaMemory.pdf

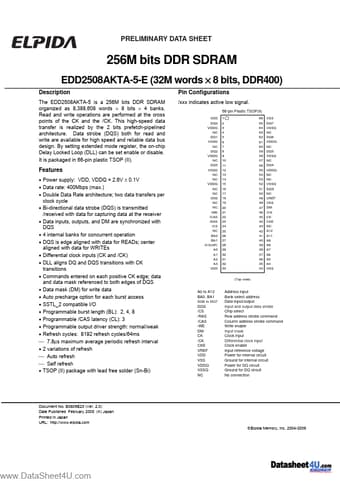

Additional preview pages of the EDD2508AKTA-5-E datasheet.

The EDD2508AKTA-5 is a 256M bits DDR SDRAM organized as 8,388,608 words × 8 bits × 4 banks.

Power supply: VDD, VDDQ = 2.6V ± 0.1V.
Data rate: 400Mbps (max. ).
Double Data Rate architecture; two data transfers per clock cycle.
Bi-directional data strobe (DQS) is transmitted /received with data for capturing data at the receiver.
Data inputs, outputs, and DM are synchronized with DQS.
4 internal banks for concurrent operation.
DQS is edge aligned with data for READs; center aligned with data for WRITEs.
Differential.
