M11B1644A, M11L1644A - (M11x1644xA) 4M X 4 DRAM

Name: M11B1644A
SKU: M11B1644A-632550

EliteMT

The M11B1644A by EliteMT is a (M11x1644xA) 4M X 4 DRAM. Below is the official datasheet preview.

Datasheet Details

Part number	M11B1644A, M11L1644A
Manufacturer	EliteMT
File Size	237.83 KB
Description	(M11x1644xA) 4M X 4 DRAM
Datasheet	M11L1644A_EliteMT.pdf
Note	This datasheet PDF includes multiple part numbers: M11B1644A, M11L1644A. Please refer to the document for exact specifications by model.

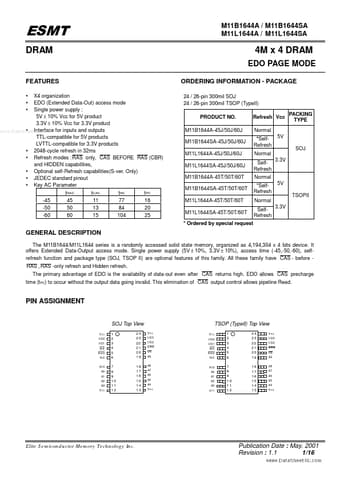

Additional preview pages of the M11B1644A datasheet.

The M11B1644/M11L1644 series is a randomly accessed solid state memory, organized as 4,194,304 x 4 bits device.

X4 organization EDO (Extended Data-Out) access mode Single power supply : 5V ± 10% Vcc for 5V product 3.3V ± 10% Vcc for 3.3V product y Interface www. DataSheet4U. com for inputs and outputs TTL-compatible for 5V products LVTTL-compatible for 3.3V products y 2048-cycle refresh in 32ms y Refresh modes : RAS only, CAS BEFORE RAS (CBR) and HIDDEN capabilities, y Optional self-Refresh capabilities(S-ver. Only) y JEDEC standard pinout y Key AC Parameter -45 -50 -60 tRAC 45 50 60 tCAC 11 13 15 tRC 77 84.
