M11L16161SA, M11L16161A - (M11x16161xA) 1M X 16 DRAM

Name: M11L16161SA
SKU: M11L16161SA-632554

EliteMT

The M11L16161SA by EliteMT is a (M11x16161xA) 1M X 16 DRAM. Below is the official datasheet preview.

Datasheet Details

Part number	M11L16161SA, M11L16161A
Manufacturer	EliteMT
File Size	240.24 KB
Description	(M11x16161xA) 1M X 16 DRAM
Datasheet	M11L16161A_EliteMT.pdf
Note	This datasheet PDF includes multiple part numbers: M11L16161SA, M11L16161A. Please refer to the document for exact specifications by model.

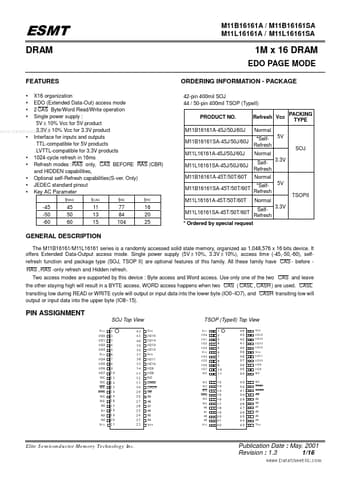

Additional preview pages of the M11L16161SA datasheet.

The M11B16161/M11L16161 series is a randomly accessed solid state memory, organized as 1,048,576 x 16 bits device.

X16 organization EDO (Extended Data-Out) access mode 2 CAS Byte/Word Read/Write operation Single power supply : 5V ± 10% Vcc for 5V product 3.3V ± 10% Vcc for 3.3V product www. DataSheet4U. com y Interface for inputs and outputs TTL-compatible for 5V products LVTTL-compatible for 3.3V products y 1024-cycle refresh in 16ms y Refresh modes : RAS only, CAS BEFORE RAS (CBR) and HIDDEN capabilities, y Optional self-Refresh capabilities(S-ver. Only) y JEDEC standard pinout y Key AC Parameter -45 -50 -60.
